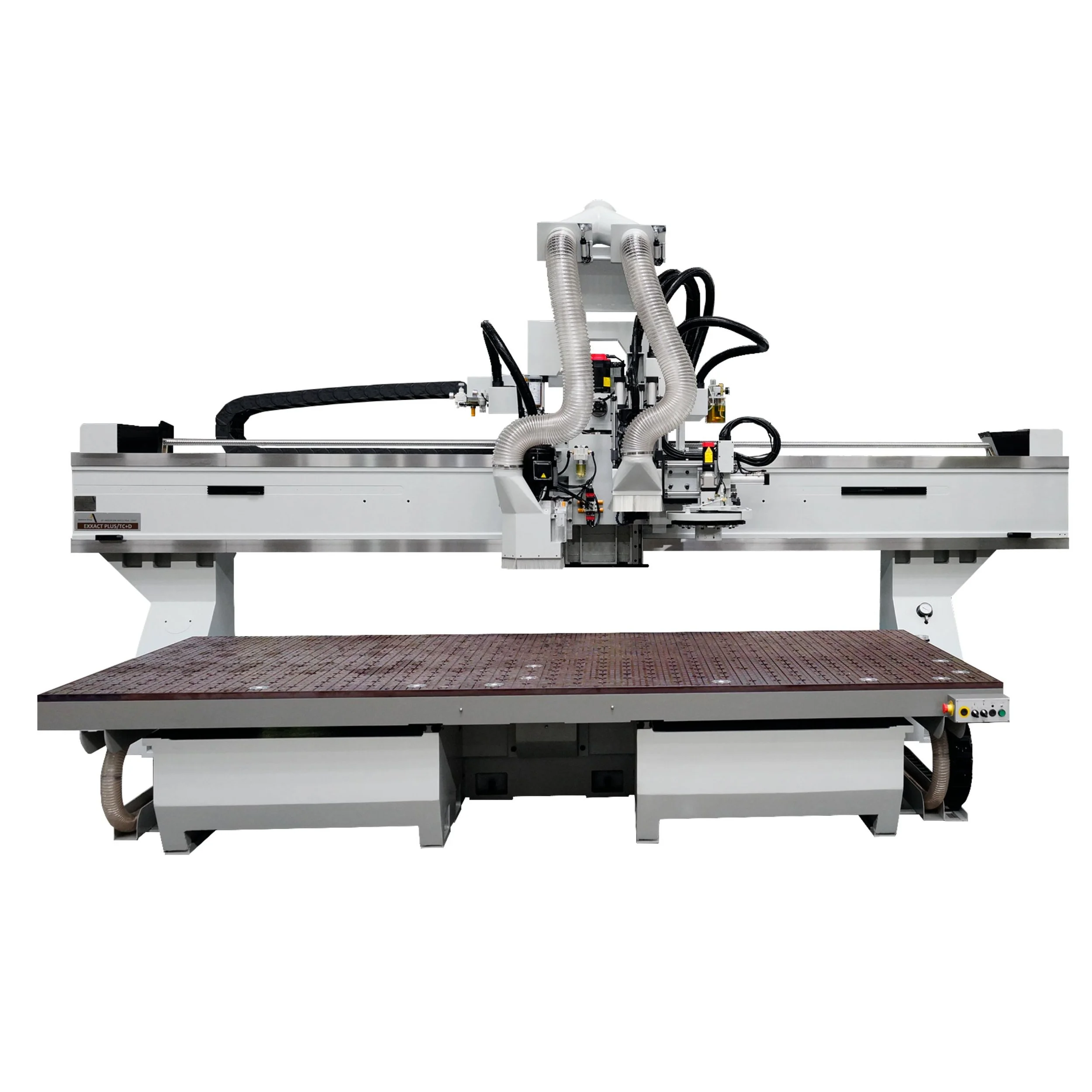

EXXACT PLUS CNC Router for Aluminium, Wood & Composites
The EXXACT PLUS Series offers 3-axis CNC routing for wood, MDF, plywood, plastics, aluminium and composites. Explore the PLUS and DUO configurations, with workholding and machine options selected for your materials, part sizes and production requirements. Discuss the appropriate setup with Anderson Australia.
Key features:
Versatile Material Processing: Ideal for wood, MDF, plywood, plastic, aluminium, and composite materials.
Anderson Fixed Bridge and Moving Table Design: Ensures effortless machine access.
Webbed Steel Substructure: Remains smooth and rigid while cutting in X, Y, and Z-axis.
Ethernet Options: Enables remote technical support.
Optional C-Axis: Enhances your machining capabilities.

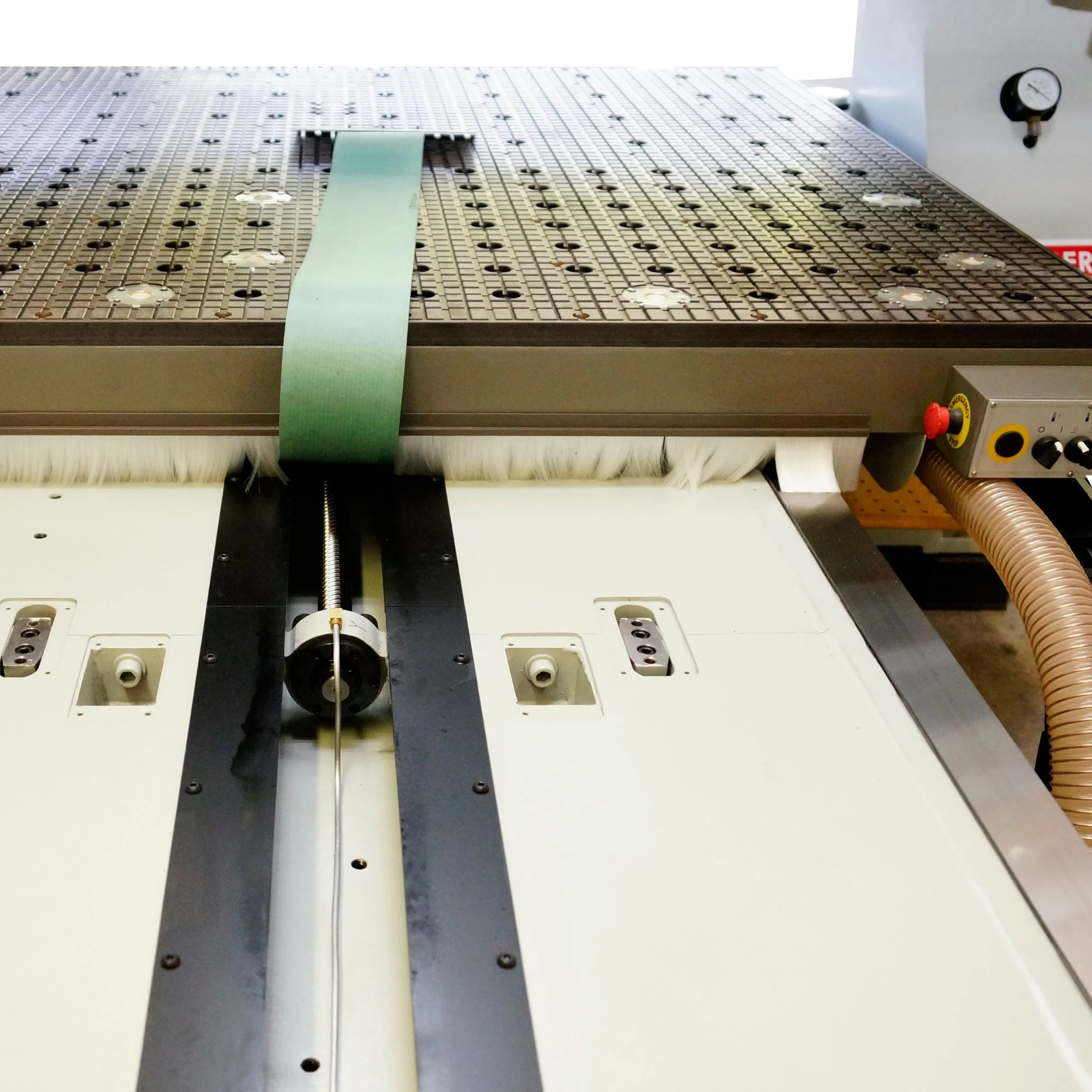

Workpiece Holding Flexibility: Optional clamping, grid, or manifold vacuum systems.
• ADVANCED MATERIALS •
• PLASTICS •
• WOODS •
• NON-FERROUS METALS •
• ADVANCED MATERIALS • • PLASTICS • • WOODS • • NON-FERROUS METALS •

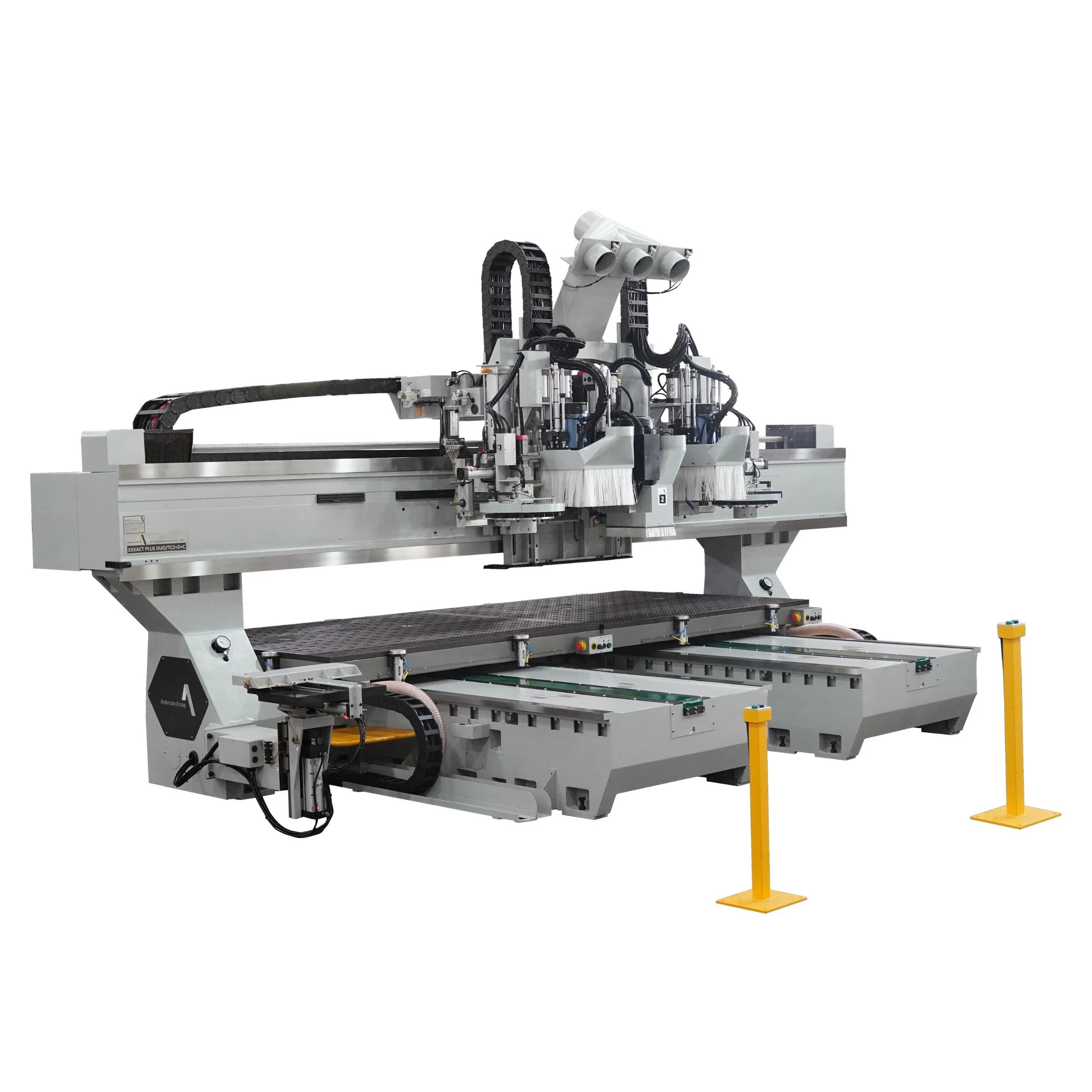

Meet the EXXACT PLUS DUO Series With Twice The Power
Discover the power of two with the EXXACT PLUS DUO Series. Designed with two spindles and dual tables to boost your production capabilities, this series brings together high-speed and precision machining in one robust package.
Key features:
Dual Spindle Design: The dual spindle design provides high-speed and high-precision machining.
Versatile Material Processing: Ideal for wood, MDF, plywood, plastic, honeycomb aluminium, and solid surface materials.
Anderson Traveling Gantry Design: Ensures effortless machine access.
Modular Design: Available in a range of formats and sizes.
Ethernet Options: Enables remote technical support.
Photos
EXXACT PLUS
EXXACT PLUS
EXXACT PLUS
EXXACT PLUS
EXXACT PLUS
EXXACT PLUS
EXXACT PLUS
EXXACT PLUS
EXXACT PLUS DUO
EXXACT PLUS DUO
SPECIFICATIONS:
| MODEL: | EXXACT PLUS/TC | EXXACT PLUS DUO/TC | |
|---|---|---|---|
| APPLICATION | Solid Wood, Plastic trimming, Composites, Non-Ferrous Metals | ||
| STROKE | X AXIS | 4400 mm | 4400 mm |
| Y AXIS | 1775 mm | 1775 mm | |
| V AXIS | N/A | 1775 mm | |
| Z AXIS | 350 mm | 350 mm | |
| TABLE SIZE | 3700 x 1600 mm | 1840 x 1600 mm x2 | |
| MAX FEED SPEED | X & Y AXIS | 80 m/min | 80 m/min |
| V AXIS | N/A | 80 m/min | |
| Z AXIS | 20 m/min | 20 m/min | |
| ATC ROUTER | NUMBER OF SPINDLES | 1 | 1 |
| ROTATION SPEED | 1000~21000 rpm | 1000~21000 rpm | |
| NUMBER OF TOOLS | HSK-63F | HSK-63F | |
| TOOL DIMENSION | FOR ROUTER BIT(O.D.) | MAX. Ø25 mm | MAX. Ø25 mm |
| POWER | ATC ROUTER | 11 kW x1 | 11 kW x1 |
| VACUUN 250 CBM/HR | 6.6 kW x 2 | 6.6 kW x 2 | |
| AIR PRESSURE | HOSE:3/4" | 6 kg/cm2(85 Ib/in) | 6 kg/cm2(85 Ib/in) |
| CONSUMPTION | 480 L/min | 480 L/min | |
| NC CONTROLLER | FANUC OiMF | FANUC OiMF | |
| DIMENSIONS | FLOOR AREA | 7800 x 5000 mm | 8900 x 5100 mm |
| HEIGHT | 3200 mm | 3200 mm | |
| WEIGHT | 9000 kg | 10,000 kg | |
