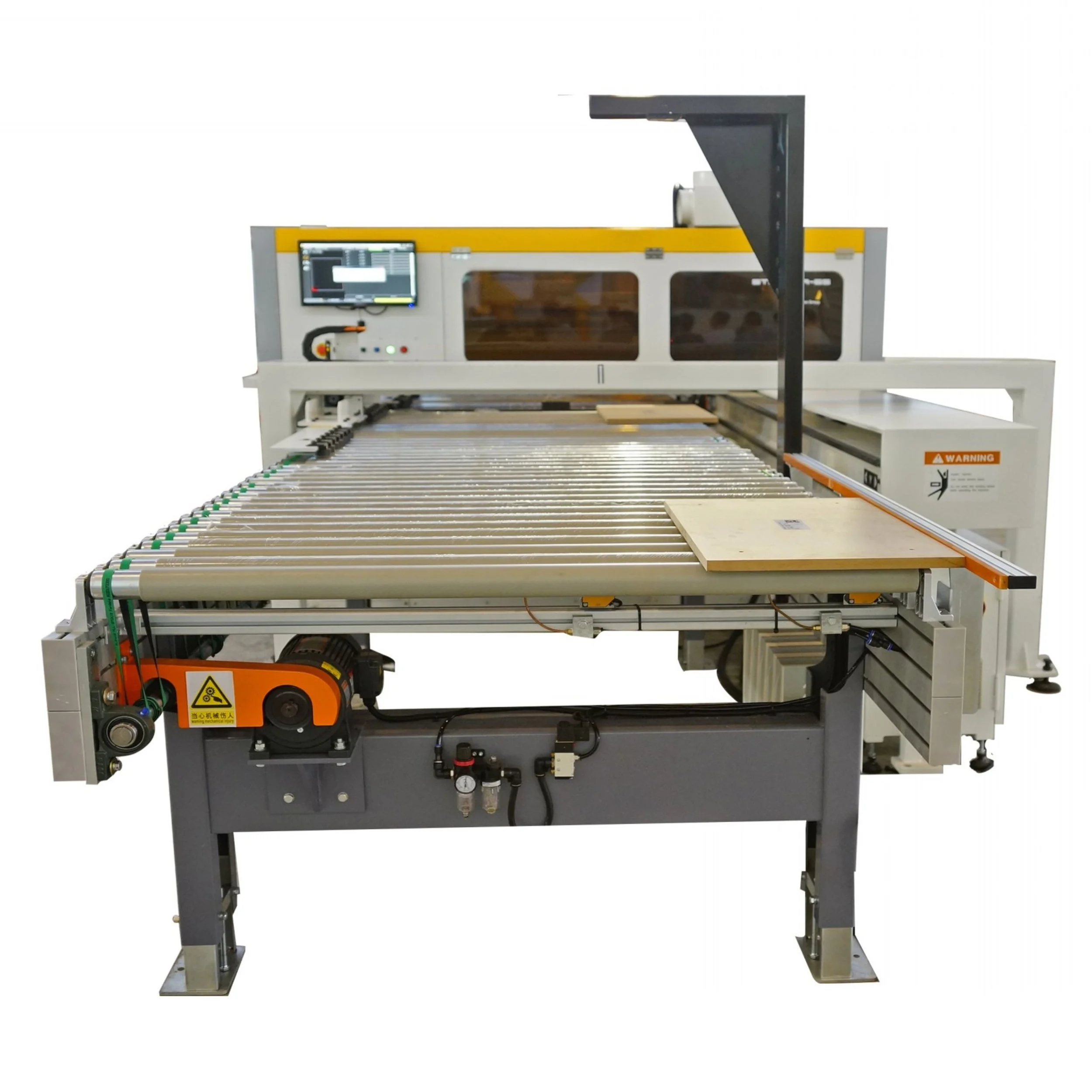

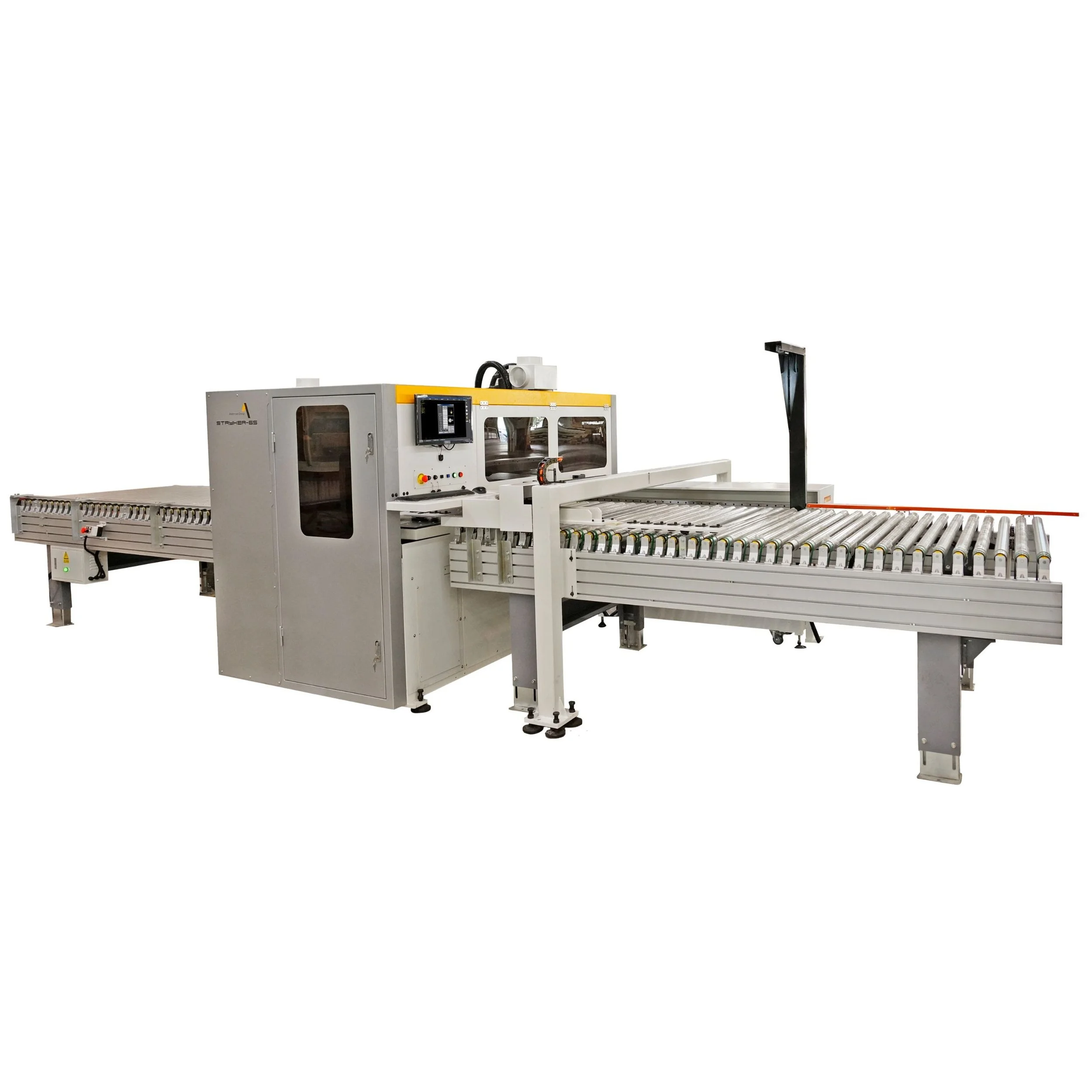

STRYKER-6S: Revolutionising Point-to-Point Machining With Unmatched Flexibility & Speed.
The STRYKER-6S is a revolutionary point-to-point through-feed machining line designed for maximum flexibility and high-volume output in boring, grooving and routing. It eliminates setup time and operator-dependent accuracy, making small-batch processing as efficient as large runs.
Key features:
Zero Machine Setup Time: Enables greatly increased part-to-part throughput and overall productivity.
Optical Part Reading & Auto-Positioning: Features exclusive optical part reading for perfect edge referencing and boring, along with fully automatic parts positioning to eliminate operator misfeeds.
Flexible Batch Processing: Equally effective for small batch random part processing as it is for large production runs.

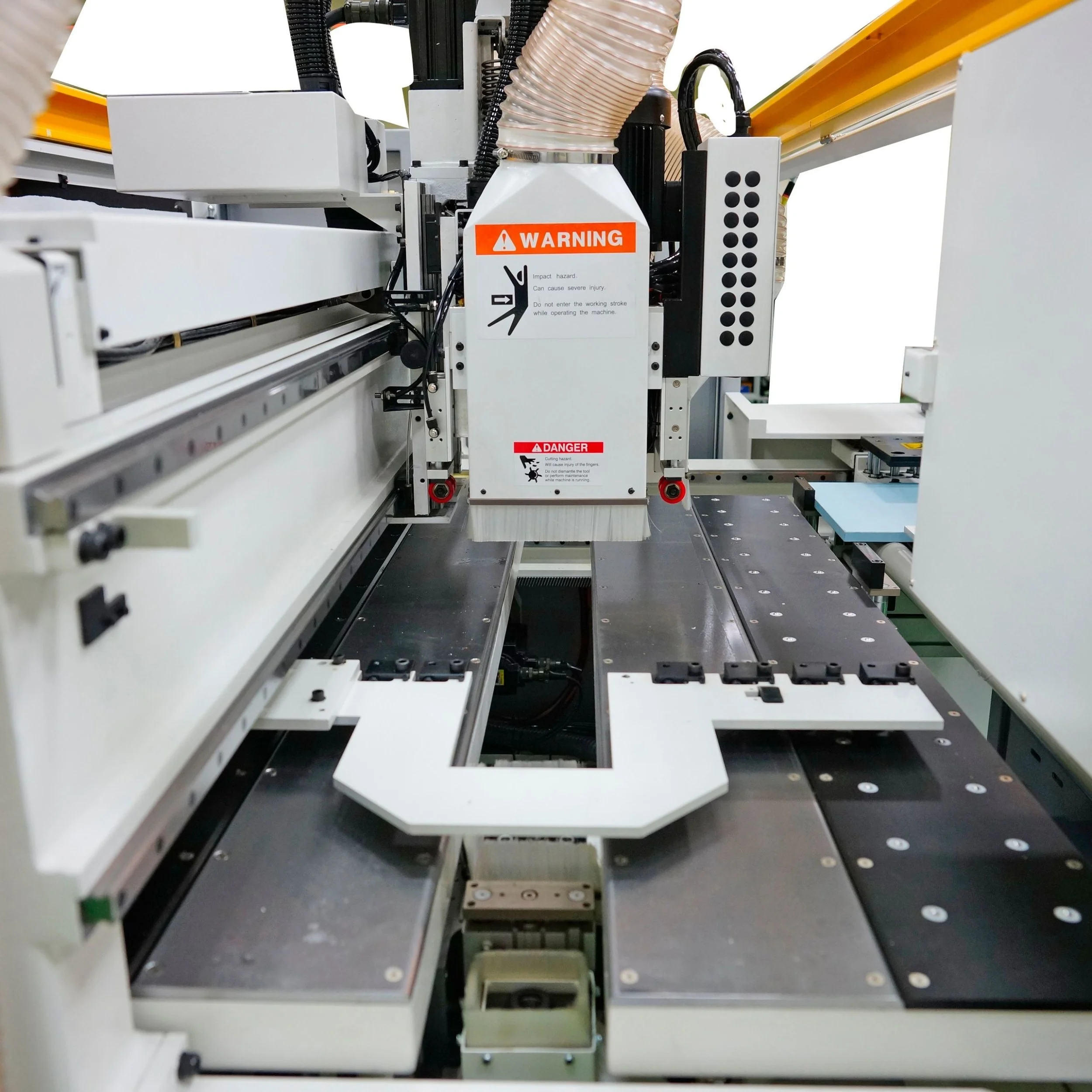

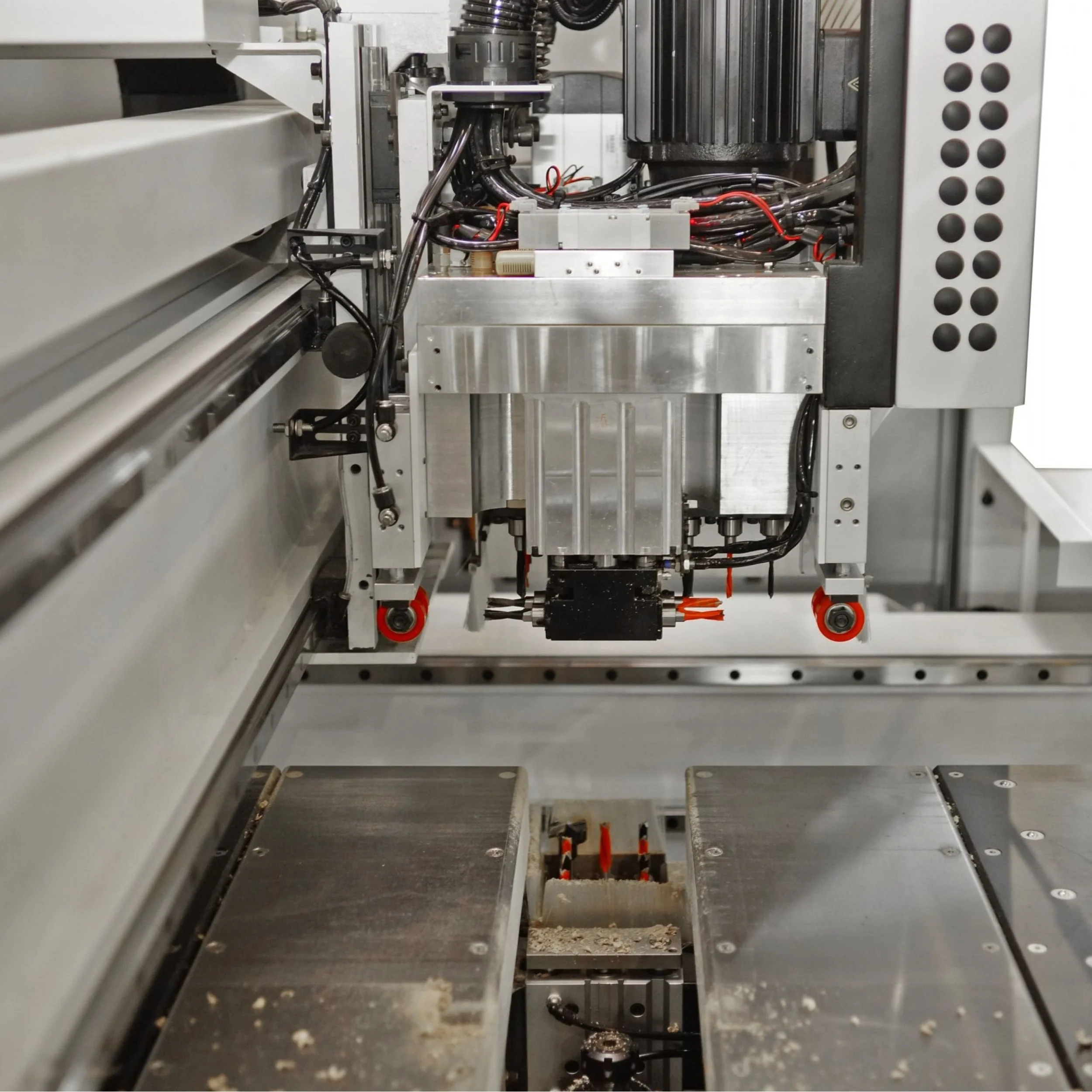

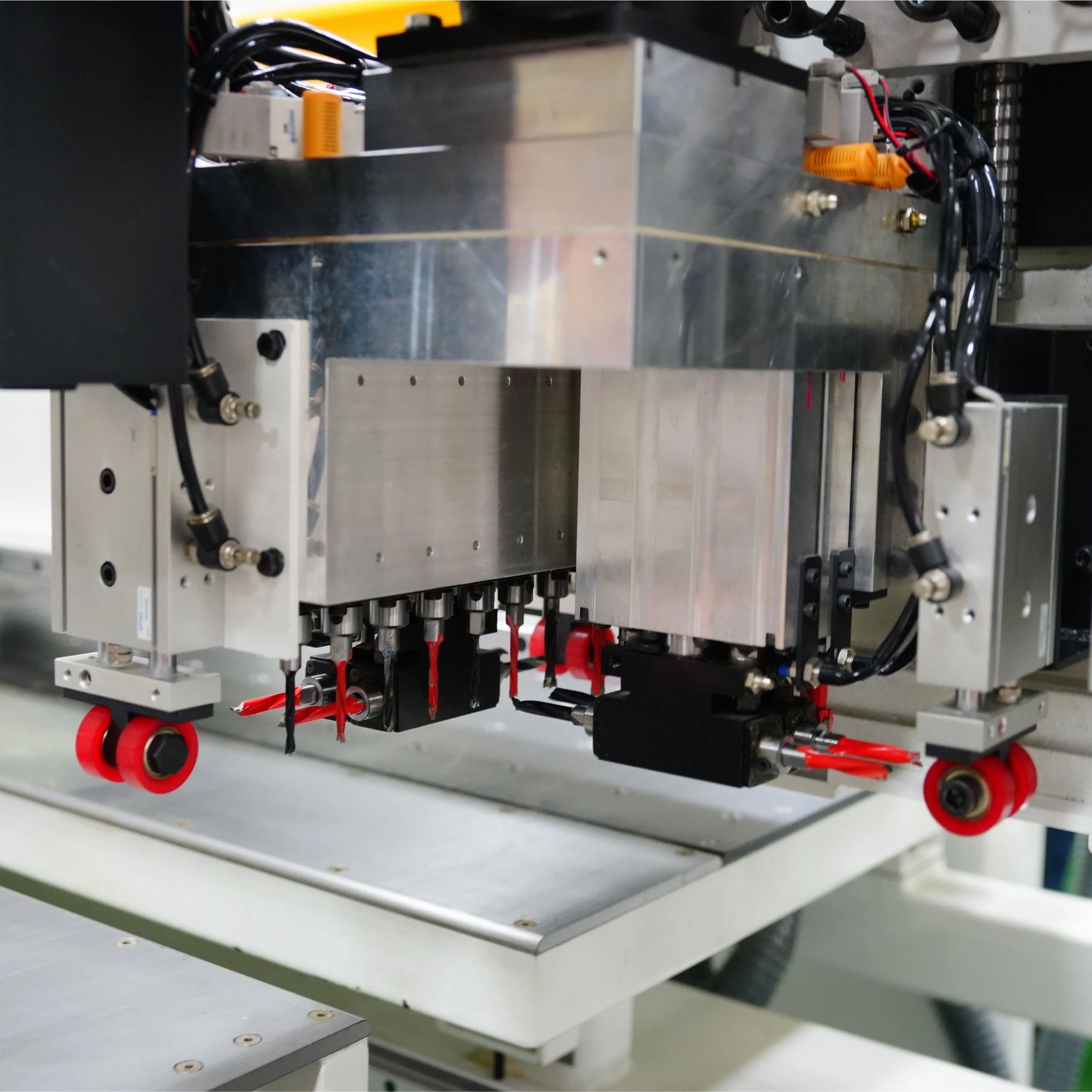

Dual Drill Units for Six-Sided Machining: Equipped with two drill units (top and bottom) capable of processing six sides of material in a single pass, significantly improving production efficiency.

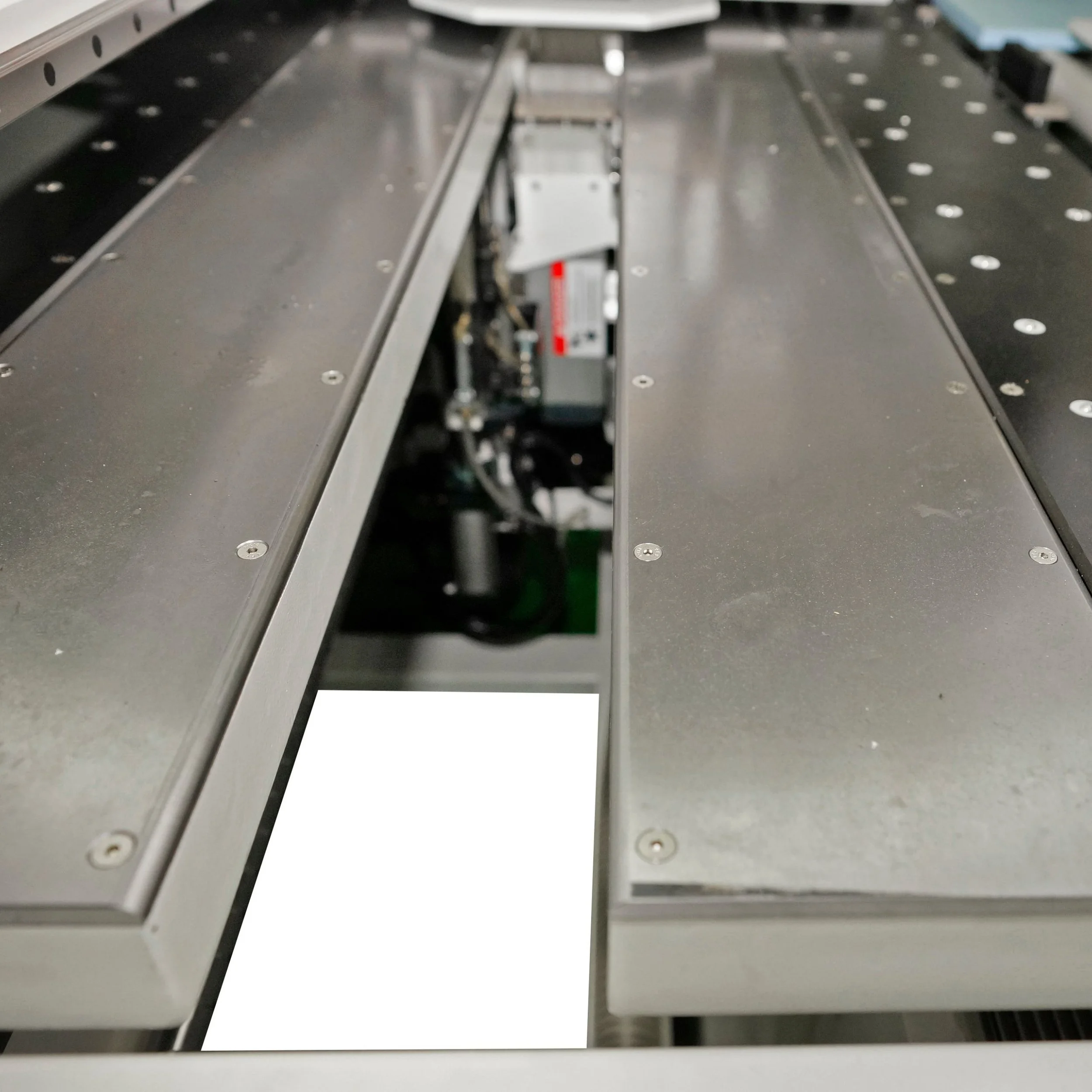

Advanced Material Handling: Includes a material feeding system with an optional auto barcode reader, an air-floating table to reduce friction, and a servo gripper system that records positions for no downtime.
Precision Drive System: Utilises a ballscrew drive system for stable and accurate processing quality, complemented by a duo gripper system to handle materials up to 2,400mm.

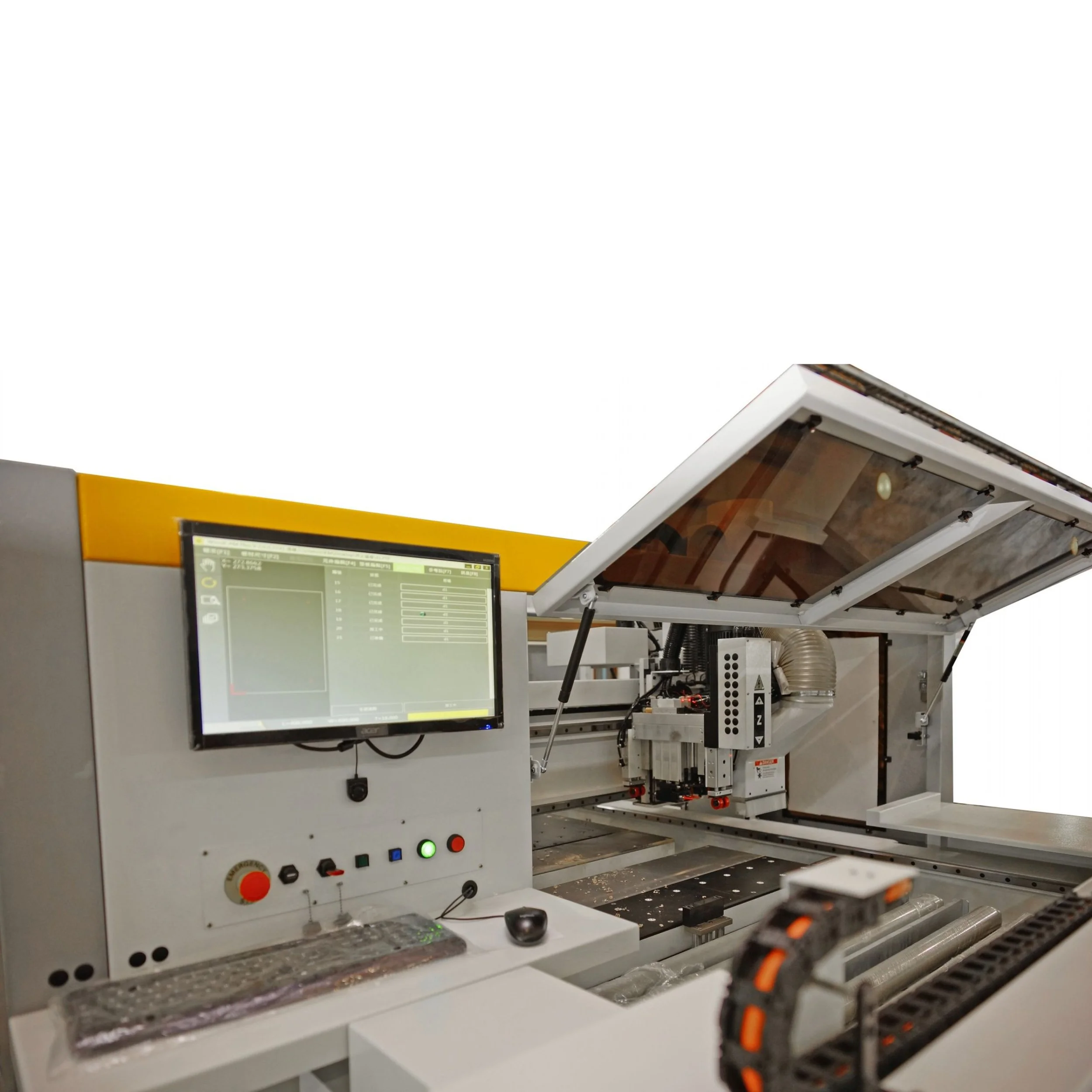

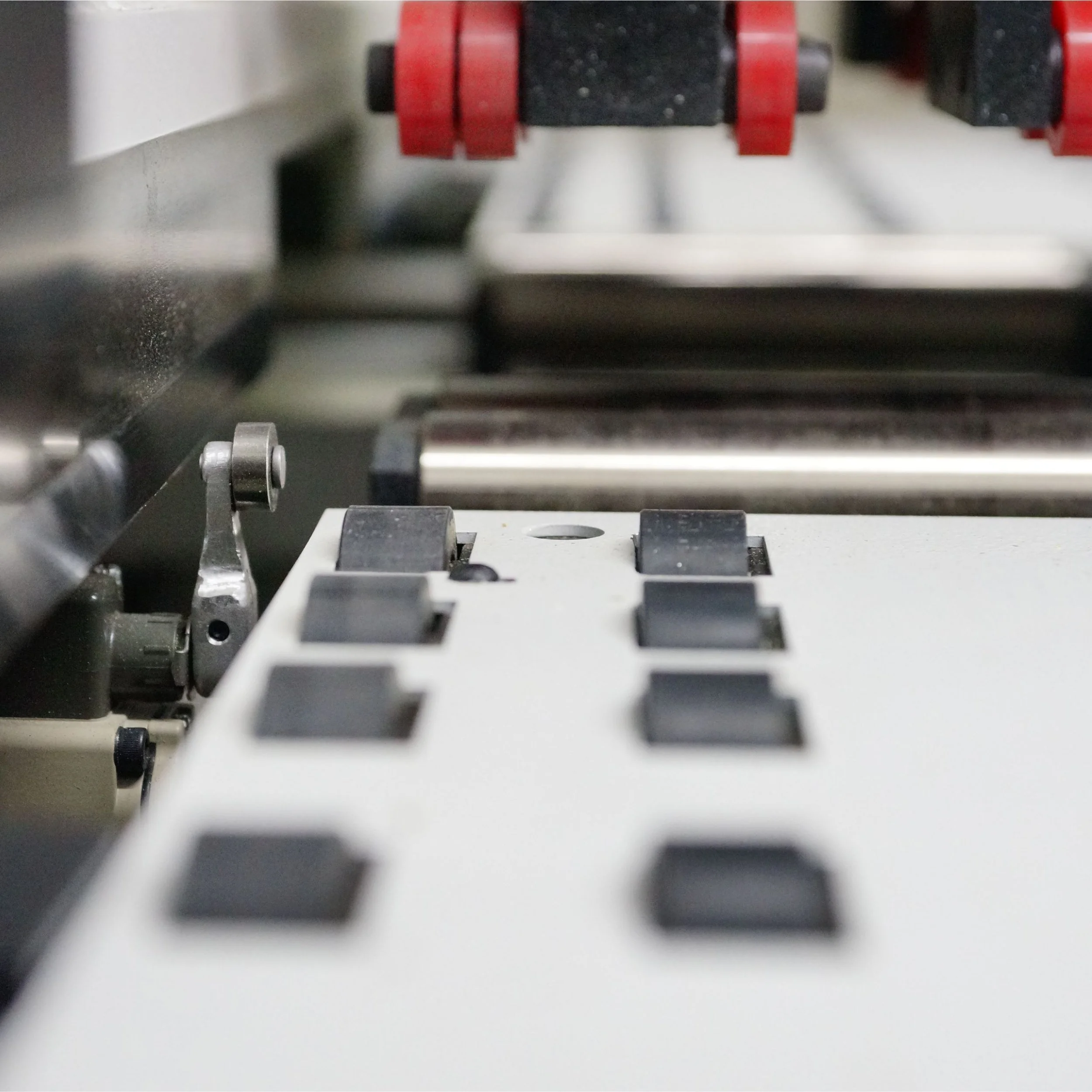

Videos & Photos
SPECIFICATIONS:
| MODEL: | STRYKER-6S | |
|---|---|---|
| APPLICATION | Panel Process | |
| PANEL SIZE | LENGTH | 350-2400 mm |
| WIDTH | 120-1200 mm | |
| THICKNESS | 10-25 mm | |
| MAX FEED SPEED | X1 & X2 AXIS | 60 m/min |
| Y1 & Y2 AXIS | 80 m/min | |
| U AXIS | 30 m/min | |
| Z1 & Z2 AXIS | 15 m/min | |
| QTC HEAD | UPPER SPINDLE | 3 kW |
| LOWER SPINDLE | 3 kW | |
| MULTI-DRILL | UPPER DRILL | 12 vertical and horizontal (2*2 in X direction; 2*2 in Y direction) drills with 4,800 rpm |
| LOWER DRILL | 9 vertical drills with 4,800 rpm | |
| AIR PRESSURE | HOSE:3/4" | 6 kg/cm2(85 lb/in2) |
| CONSUMPTION | 330 L/min(11 cfm) | |
| NC CONTROLLER | SYNTEC 21MA | |
| DIMENSIONS | FLOOR AREA | 4500 mm x 5500 mm |
| HEIGHT | 2000 mm | |
| WEIGHT | 2000 kg |
