WOODS PANEL PROCESSING

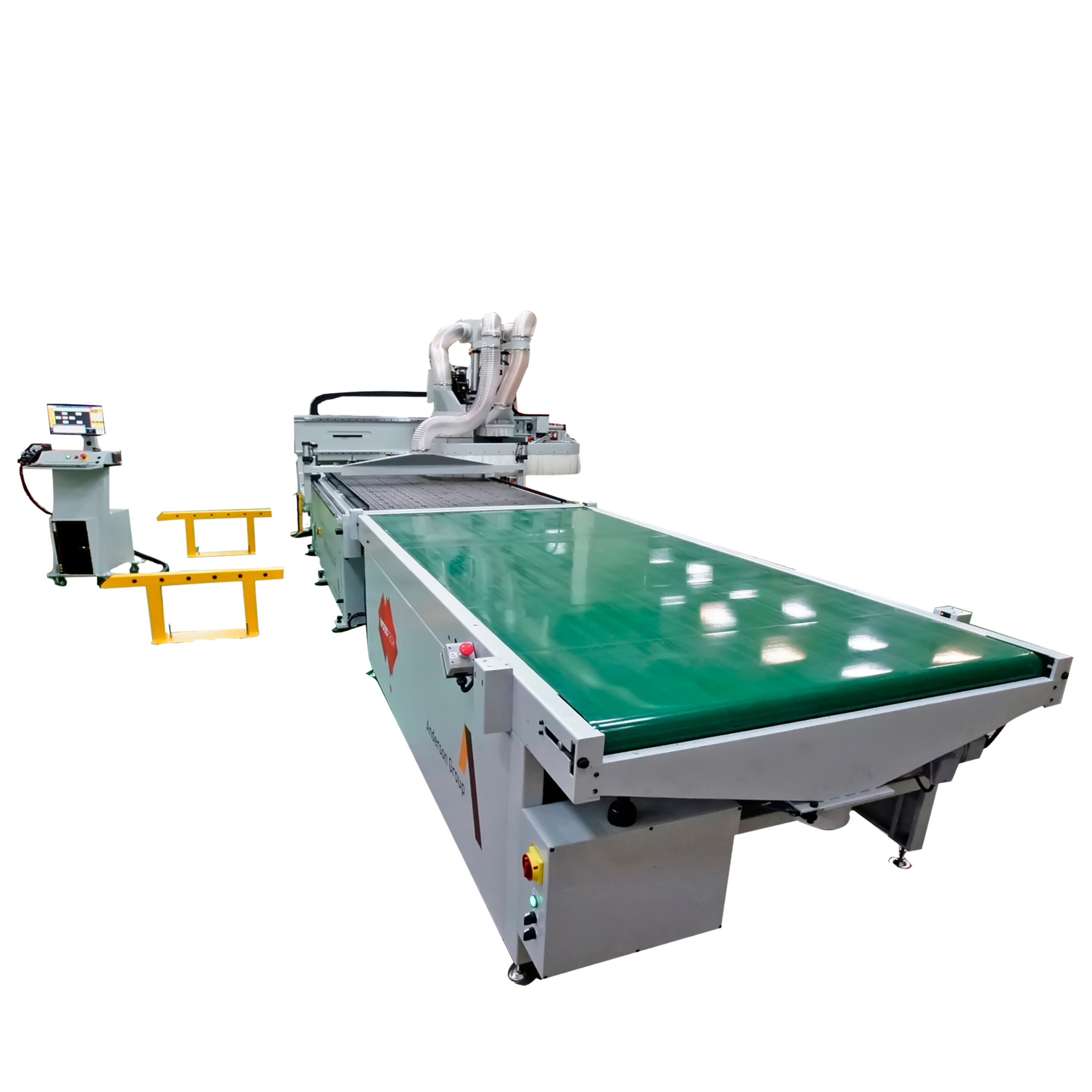

Leading Design, Quality Components & Incredible Value. Meet the SPECTRA PLUS Series.
With a focus on high performance, reliability, and innovation in one turnkey package, the SPECTRA PLUS Series is your go-to CNC Router. Never have so many machine features been packed into an entry-level industrial CNC router. Its affordable price offers a 10HP router spindle and separate multi-spindle boring block.
Key features:

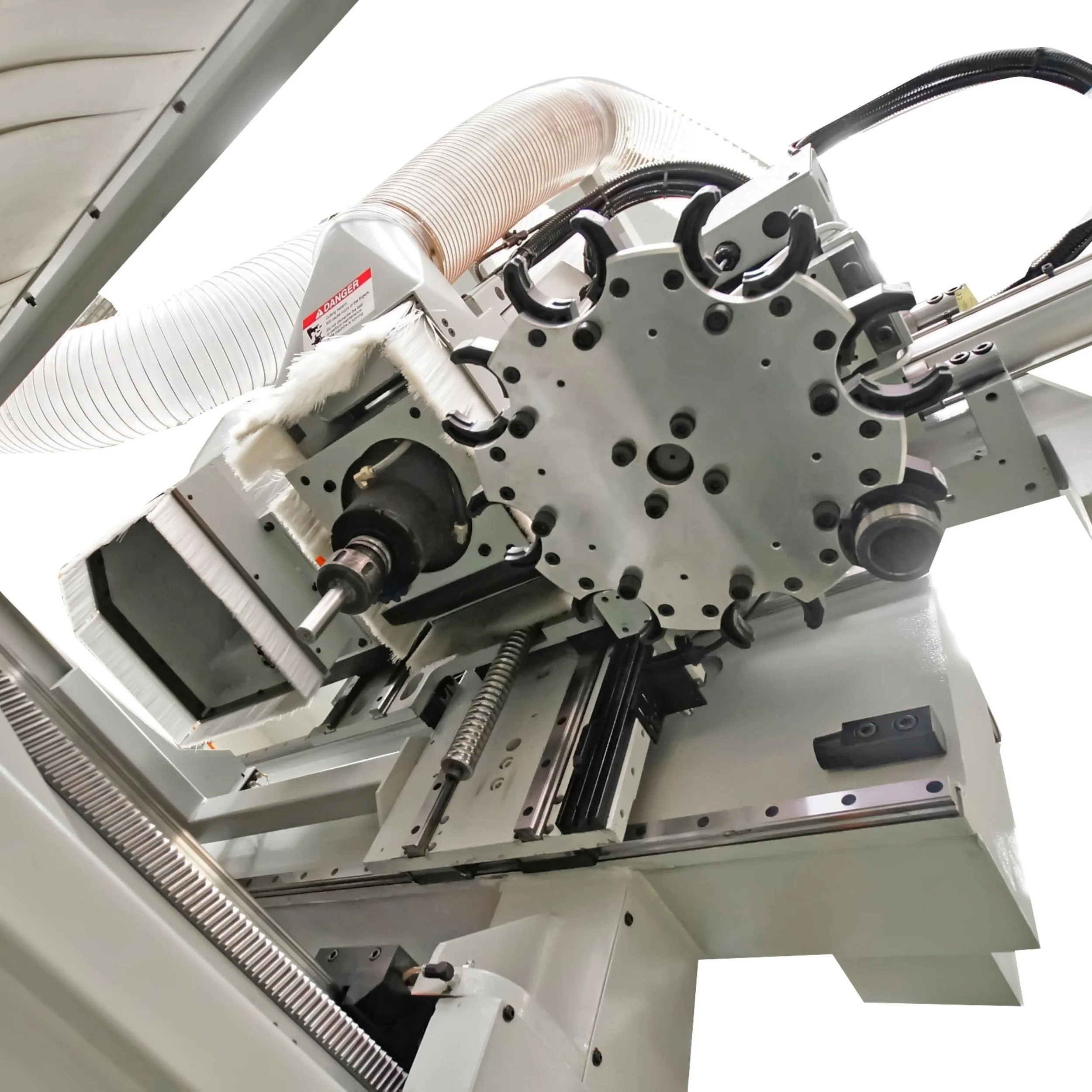

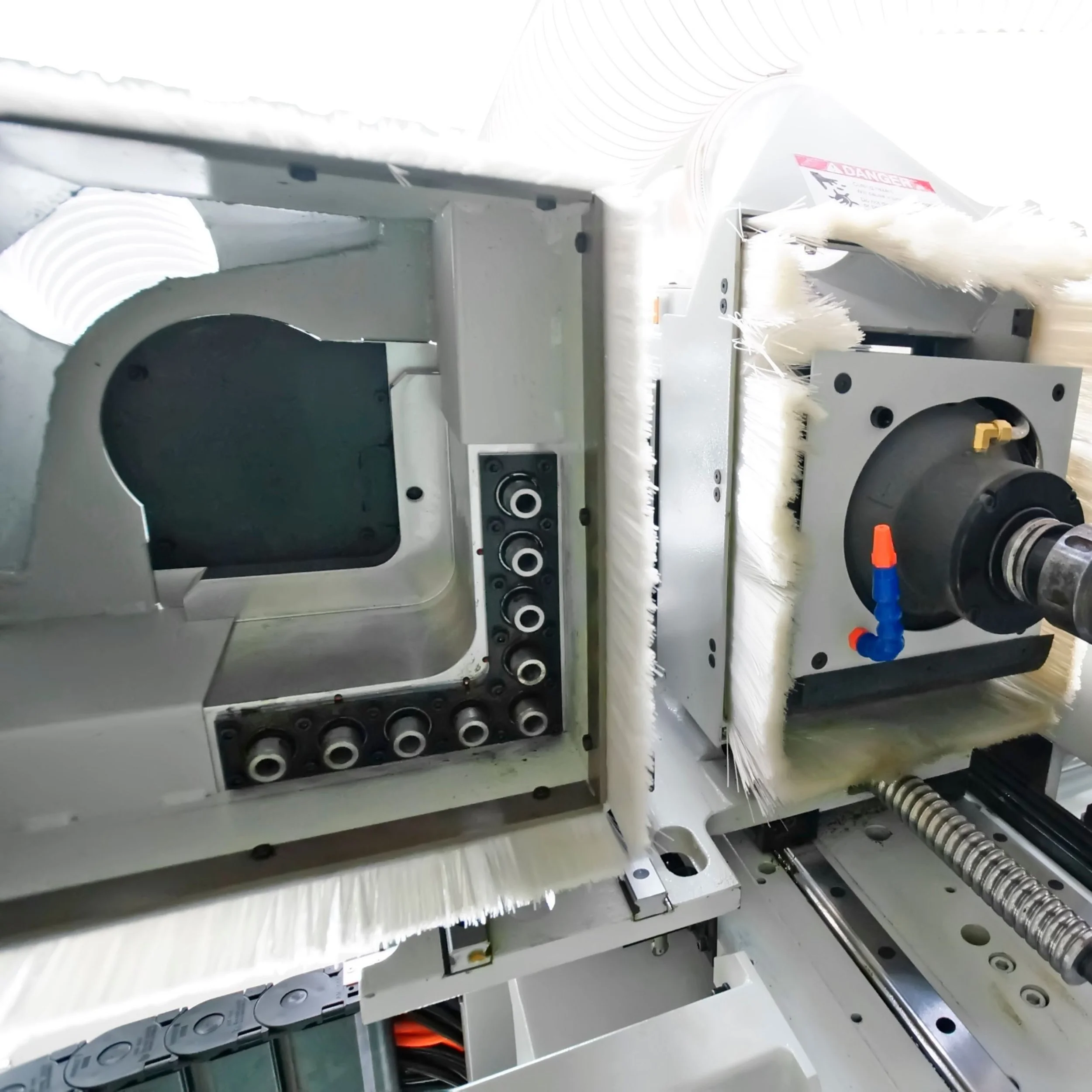

Robust Spindle & Tool Changing: Features a powerful 10HP HSK electro spindle (1,000-21,000 RPM) paired with a 8-position static tool changer and a multi-spindle drill head.

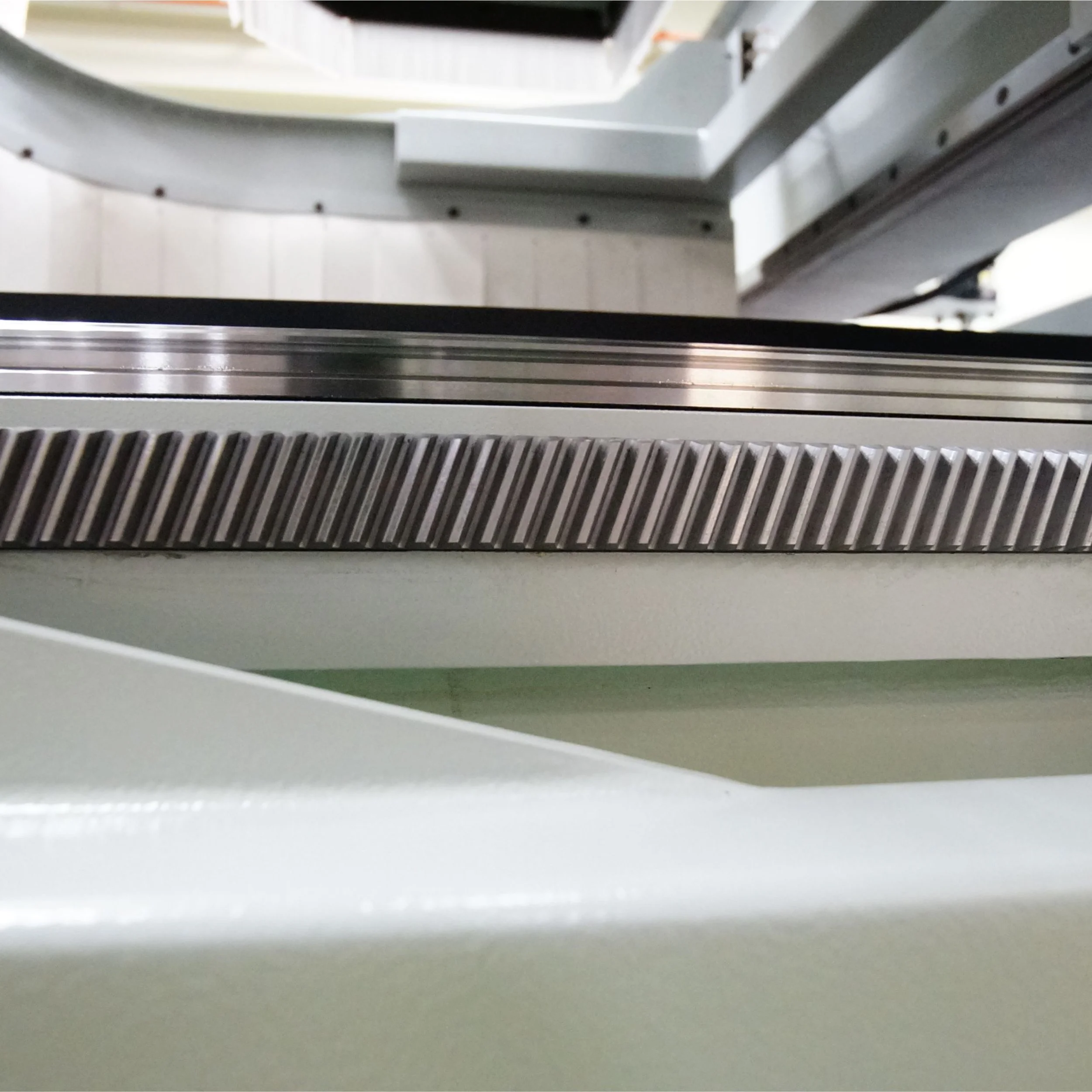

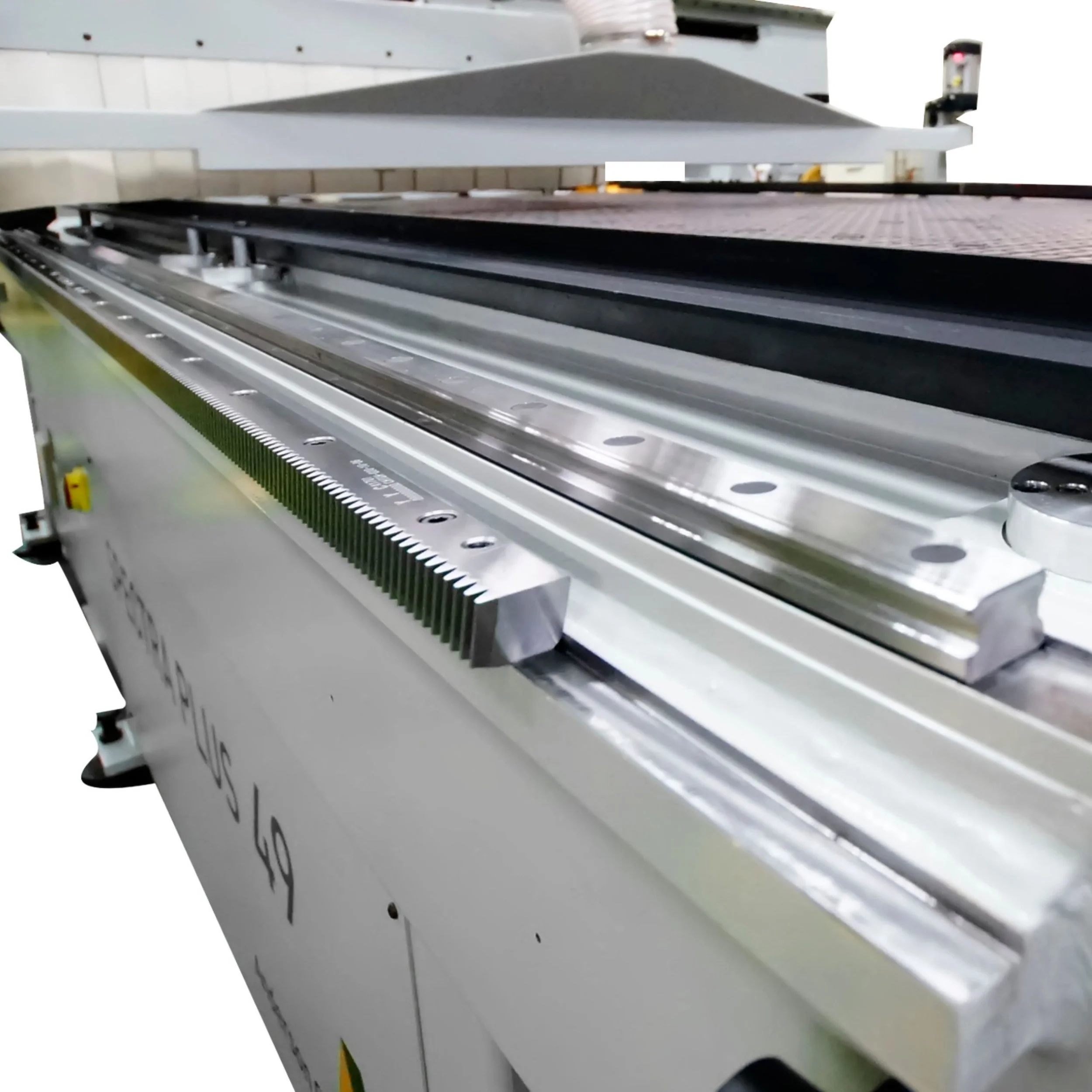

Precision Motion System: Utilises hardened ball screws for the Z-axis and a precision rack and pinion system with a dual drive on the Y-axis, ensuring superior cutting speed and quality.
Heavy-Duty Construction: Built with a cast iron mounting plate for routing and drilling units and a welded torsion-resistant steel vacuum table, providing excellent vibration dampening and rigidity.

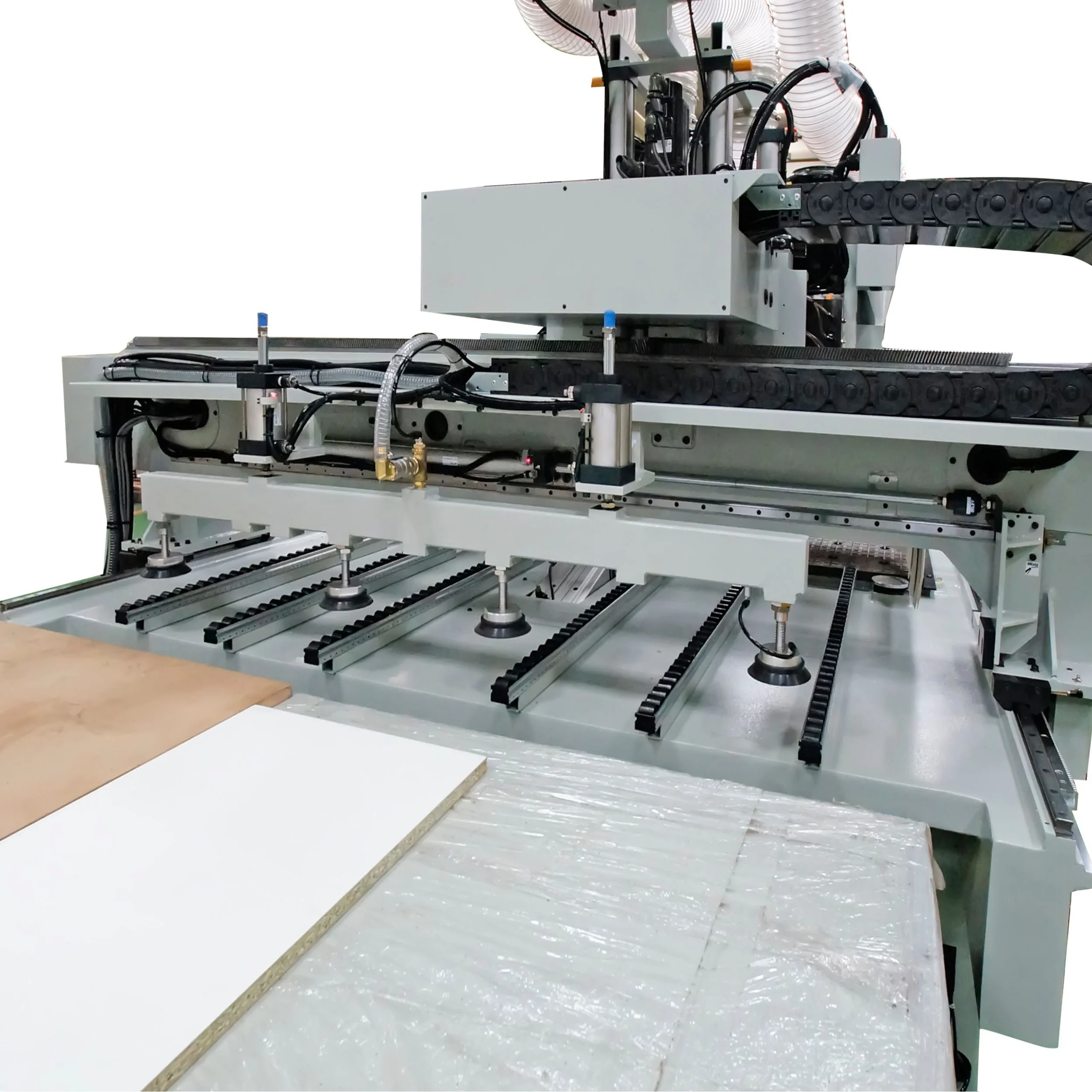

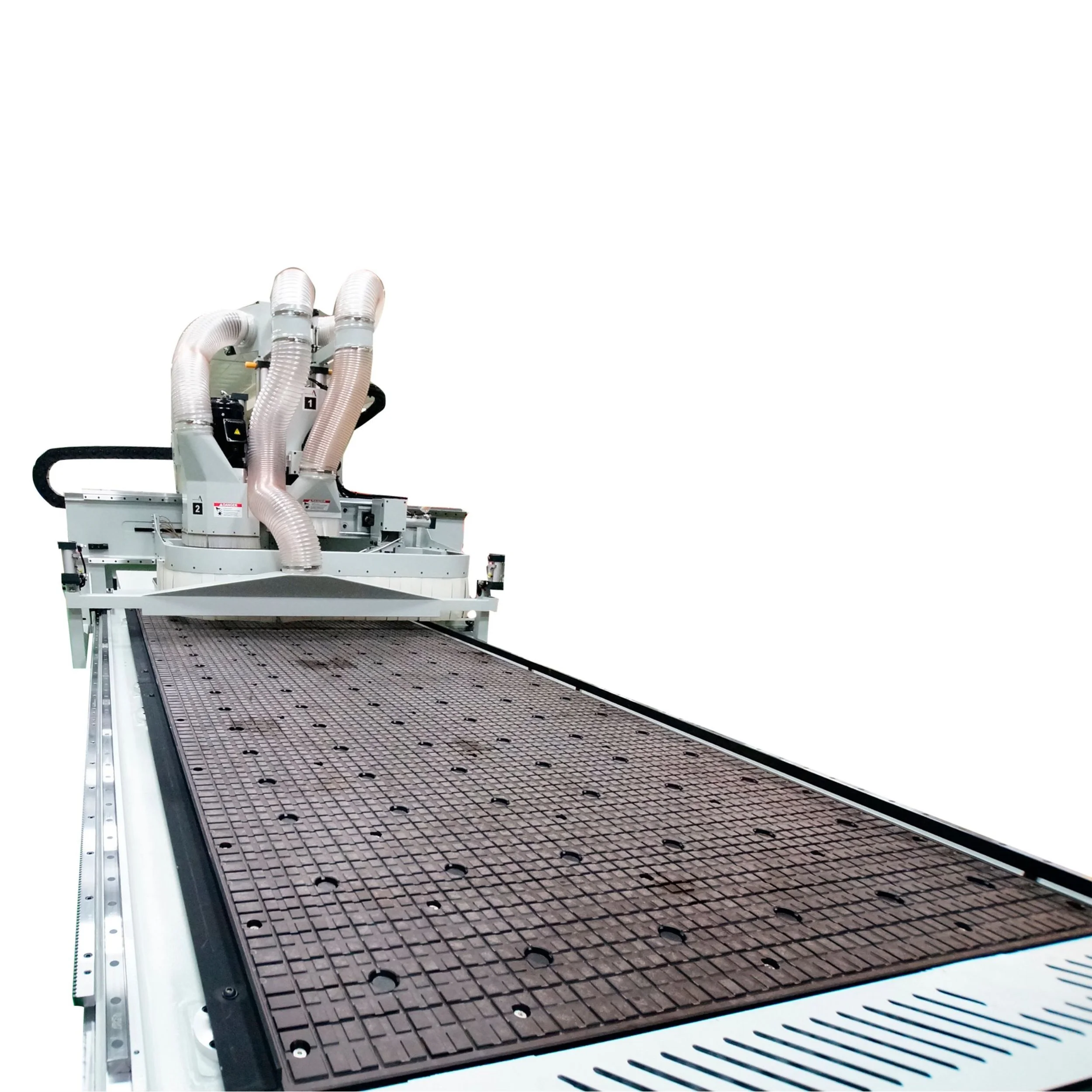

Efficient Vacuum & Workpiece Handling: Equipped with a vacuum pump (250 cbm/hour) and a hard phenolic table with automatic pop-up pins for flexible and secure workpiece holding.

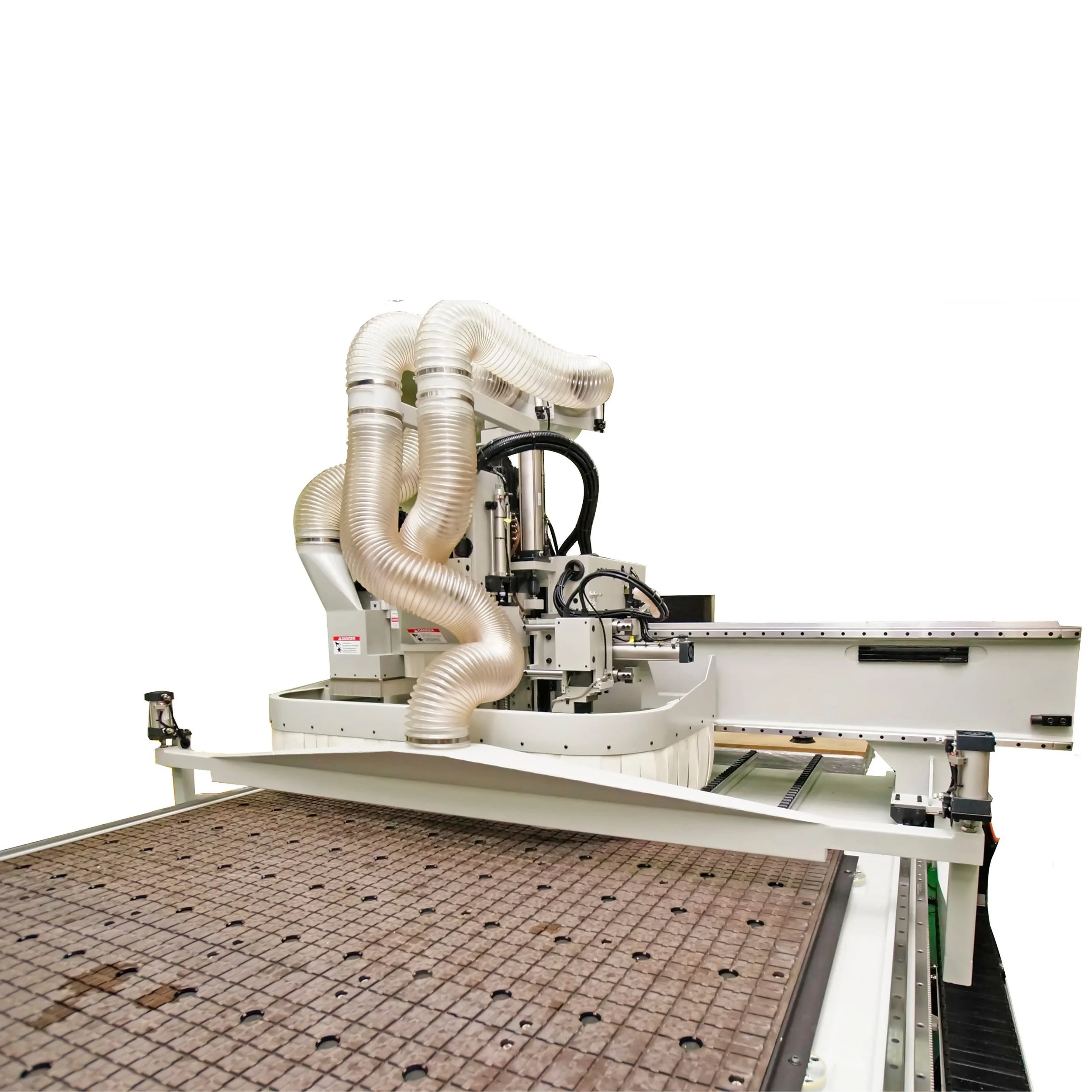

Advanced Control & Safety: Operated by a SYNTEC industrial control and includes an integrated tool touch-off device, efficient dust collection, and photocell safety curtains.
Photos

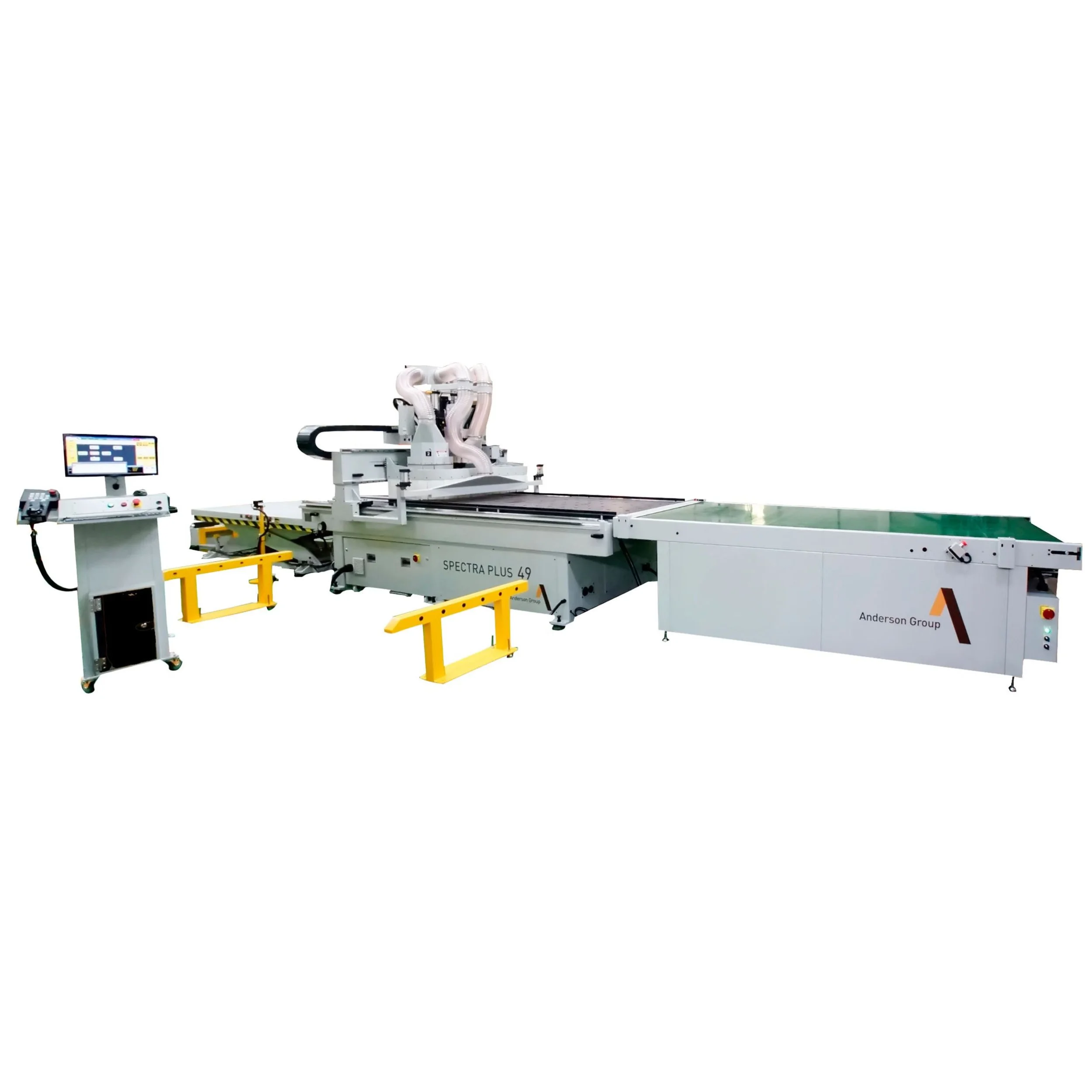

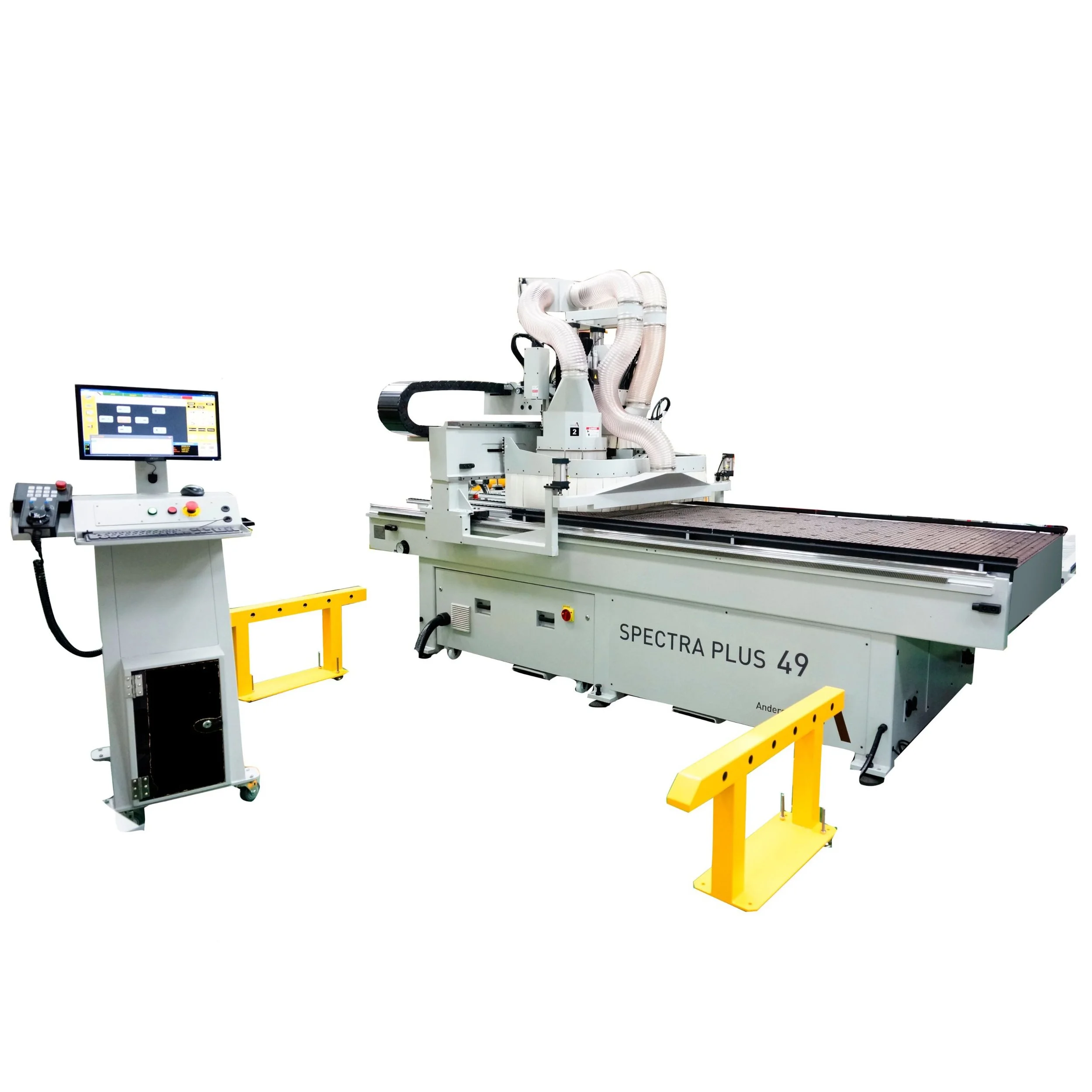

SPECTRA PLUS 49
SPECTRA PLUS 49

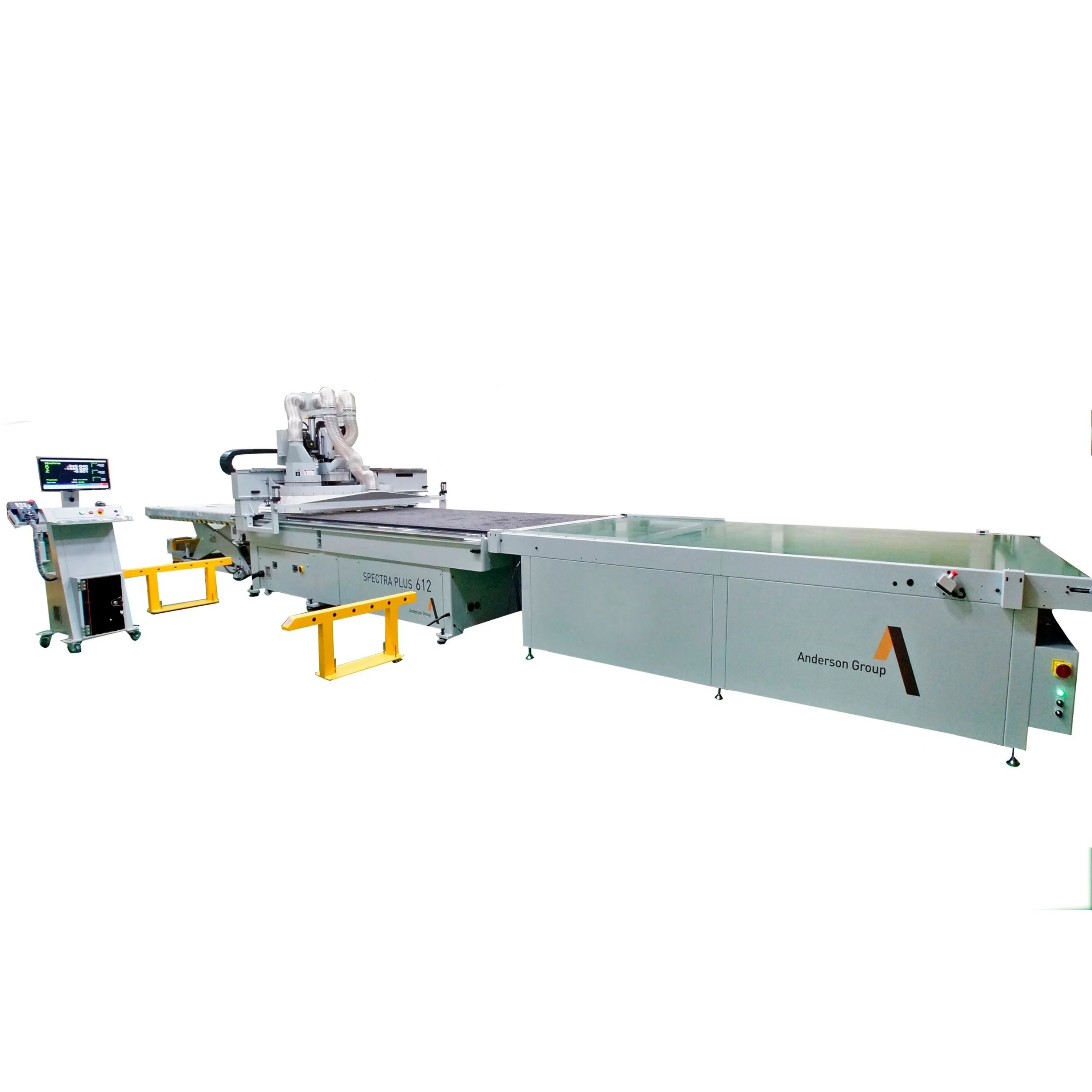

SPECTRA PLUS 612
SPECTRA PLUS 612
SPECTRA PLUS
SPECTRA PLUS
SPECTRA PLUS
SPECTRA PLUS
SPECTRA PLUS
SPECTRA PLUS
SPECTRA PLUS
SPECTRA PLUS
SPECTRA PLUS
SPECTRA PLUS
SPECTRA PLUS
SPECIFICATIONS:
| MODEL: | SPECTRA PLUS 49 FL | SPECTRA PLUS 612 | |
|---|---|---|---|
| APPLICATION | Panel Process | ||
| STROKE | X AXIS | 2810 mm | xxxx mm |
| Y AXIS | 1630 mm | xxxx mm | |
| Z AXIS | 200 mm | 200 mm | |
| TABLE SIZE | 2700 x 1250 mm | xxxx mm x xxxx mm | |
| VACUUM AREA | 4 | X | |
| MAX FEED SPEED | X AXIS | 60 m/min | 60 m/min |
| Y AXIS | 60 m/min | 60 m/min | |
| Z AXIS | 20 m/min | 20 m/min | |
| NO. 1 ATC HEAD | SPEED | 1000~21000 rpm | 1000~21000 rpm |
| SPINDLE NOSE | HSK-63F | HSK-63F | |
| NUMBER OF TOOLS | 8 | 8 | |
|
No.2 MULTI-DRILL
5x5 W/ 2 DIRECTION GROOVING SAW
|
DRILL ROTATION SPEED | 4800 rpm | 4800 rpm |
| SHANK OF DRILL | Ø10 mm | Ø10 mm | |
| TOOLING | SHANK OF ROUTER BIT | MAX.Ø25 mm | MAX.Ø25 mm |
| POWER | NO. 1 ATC ROUTER | 7.5 kW x1 | 7.5 kW x1 |
| NO. 2 MULTI-DRILL | 1.5 kW x 1 | 1.5 kW x 1 | |
| VACUUM PUP 250 CBM/HR | 6.6 kW x 2 | 6.6 kW x 2 | |
| AIR PRESSURE | HOSE:3/4" | 6 kg/cm2(85 lb/in2) | 6 kg/cm2(85 lb/in2) |
| CONSUMPTION | 330 L/min(11 cfm) | 330 L/min(11 cfm) | |
| NC CONTROLLER | SYNTEC 21MA | SYNTEC 21MA | |
| DIMENSIONS | FLOOR AREA | 12000 mm x 5200 mm | xxxxx mm x xxxx mm |
| HEIGHT | 2550 mm | 2550 mm | |
| WEIGHT | 5000 kg | xxxx kg |
