Servo Precision. Consistent Finish. The AFS-568 PRO.
The AFS-568 PRO brings servo-controlled finishing, a top feed belt and an enclosed adhesive delivery system together in one automatic edgebander. Built for professional cabinet and furniture production, it offers precise setup, stable panel handling and efficient changeovers across different edge thicknesses.
Key features:
Windows PC & Pendant Control: A large widescreen touchscreen provides clear machine control. An internal pendant touchscreen gives operators convenient access to servo-unit settings.
Top Feed Belt System: A continuous upper belt applies even pressure for smooth, stable feeding through the working units, including delicate and high-gloss panels.
Closed PUR / EVA Glue System: A plunger feeds adhesive through a heated hose directly to the glue head. The enclosed system removes the traditional glue pot and supports efficient adhesive and colour changeovers.
Servo Multi-Radius Finishing: Trimming and radius scraping automatically adjust for 1mm, 1.5mm and 2mm edge tape. Nesting tracers help the units work around hinge holes.
Prepared, Bonded & Finished: Servo infeed positioning, pre-milling and infrared edge heating prepare the panel. The pressure zone, end saws, corner rounding, flat scraping and buffing complete the process.
Built for Daily Production: Automatic thickness positioning, timed lubrication, multi-point cleaning sprays and a stress-relieved steel frame support consistent operation at 18–23m/min.
Photos

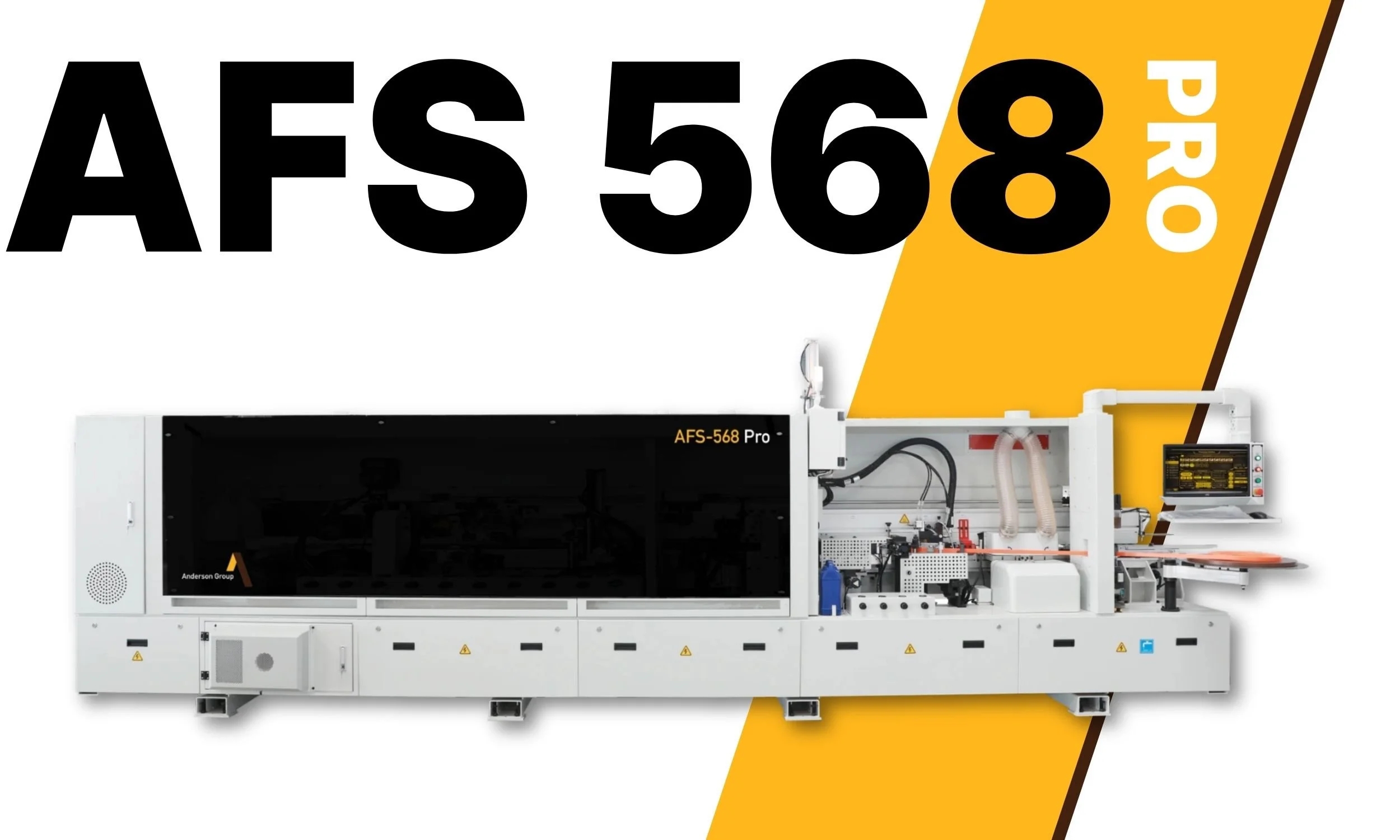

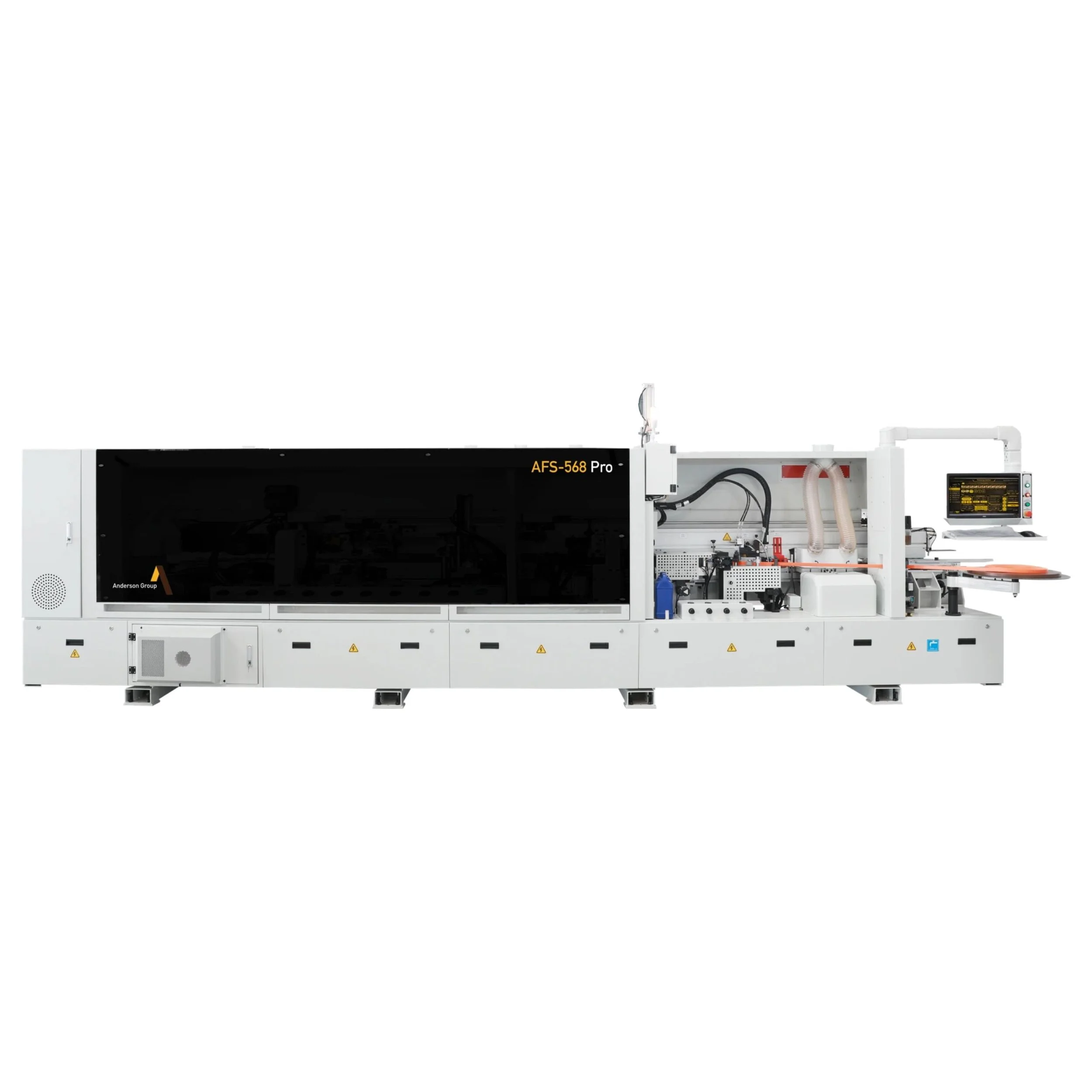

AFS 568 PRO with widescreen PC controller

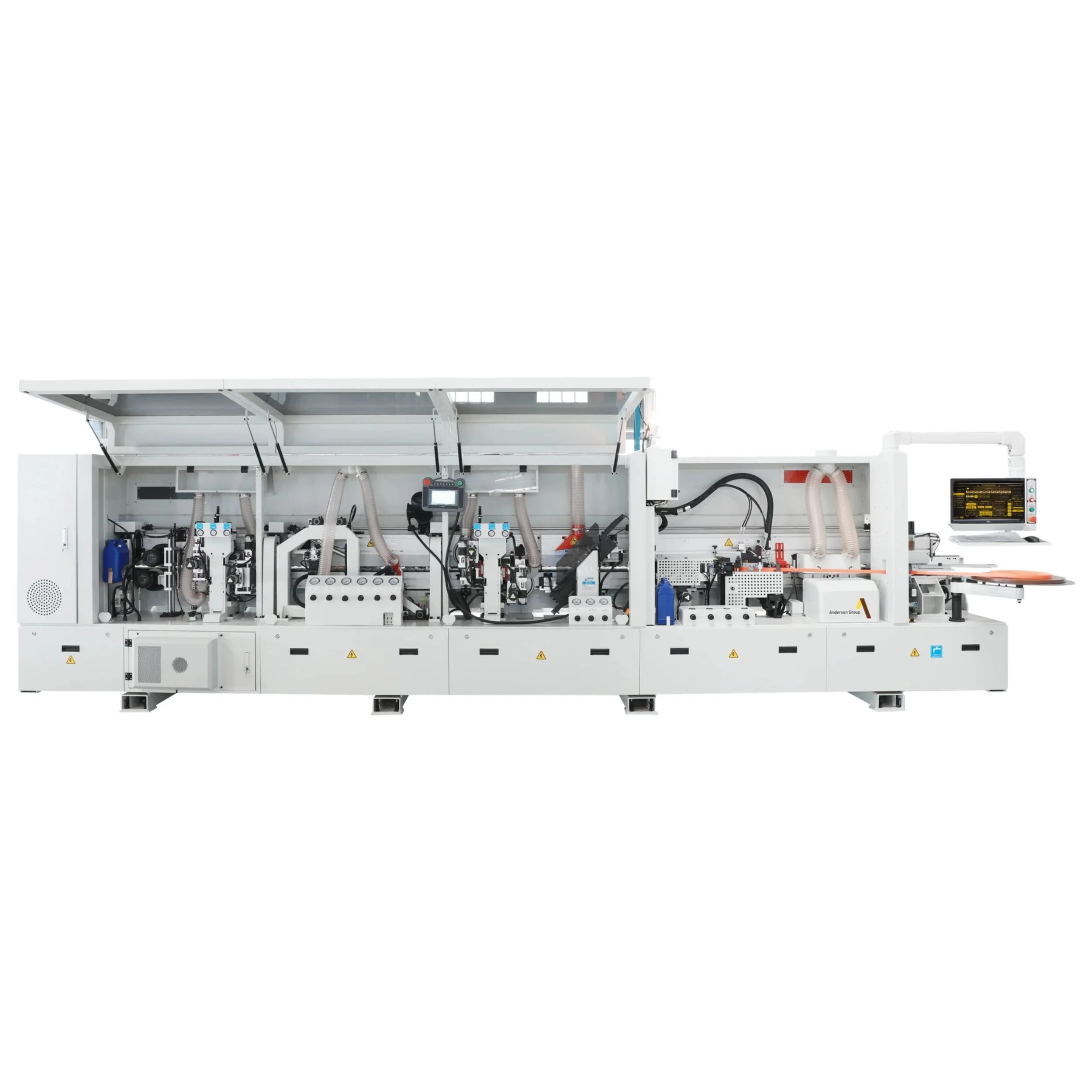

AFS 568 PRO — working units

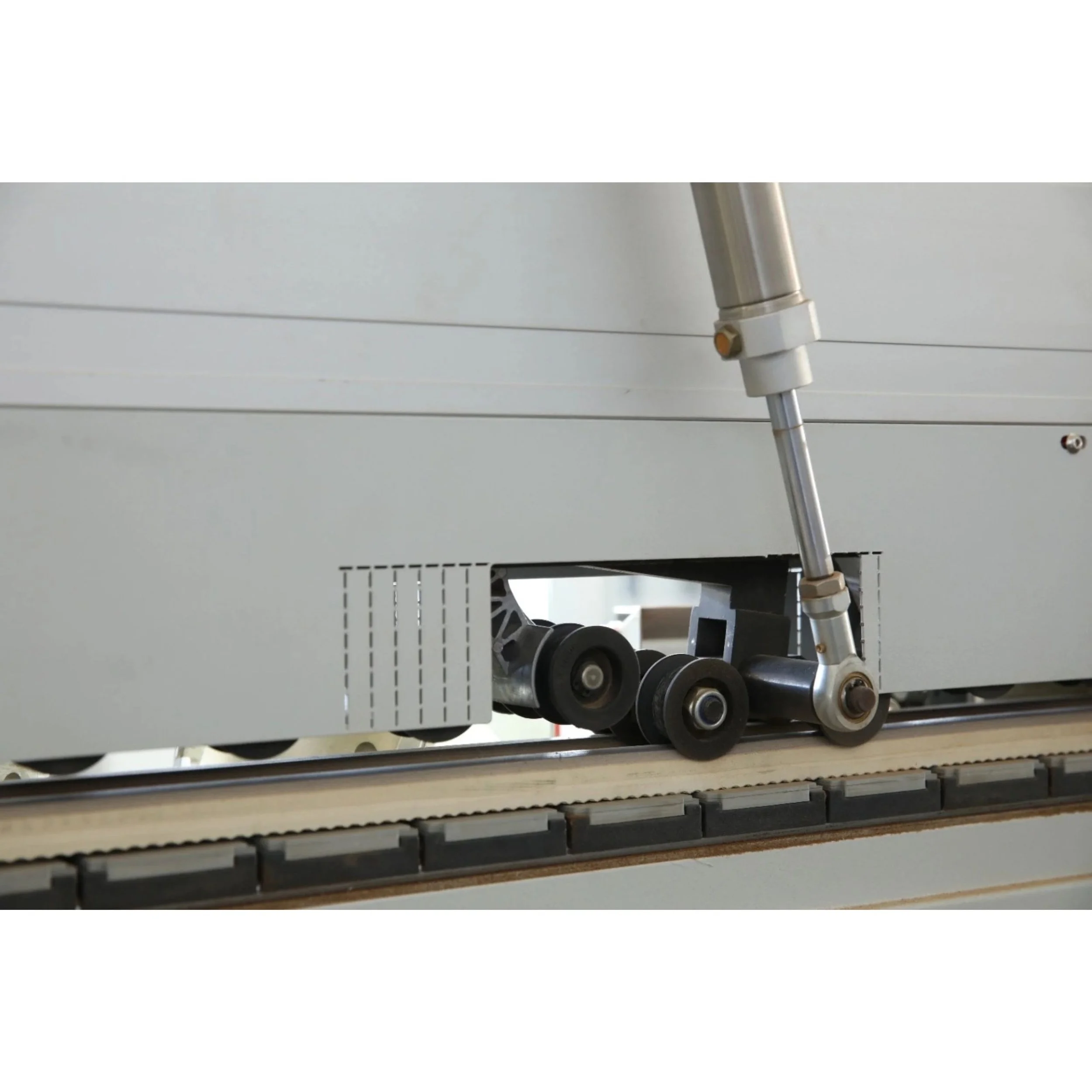

Top feed belt pressure system

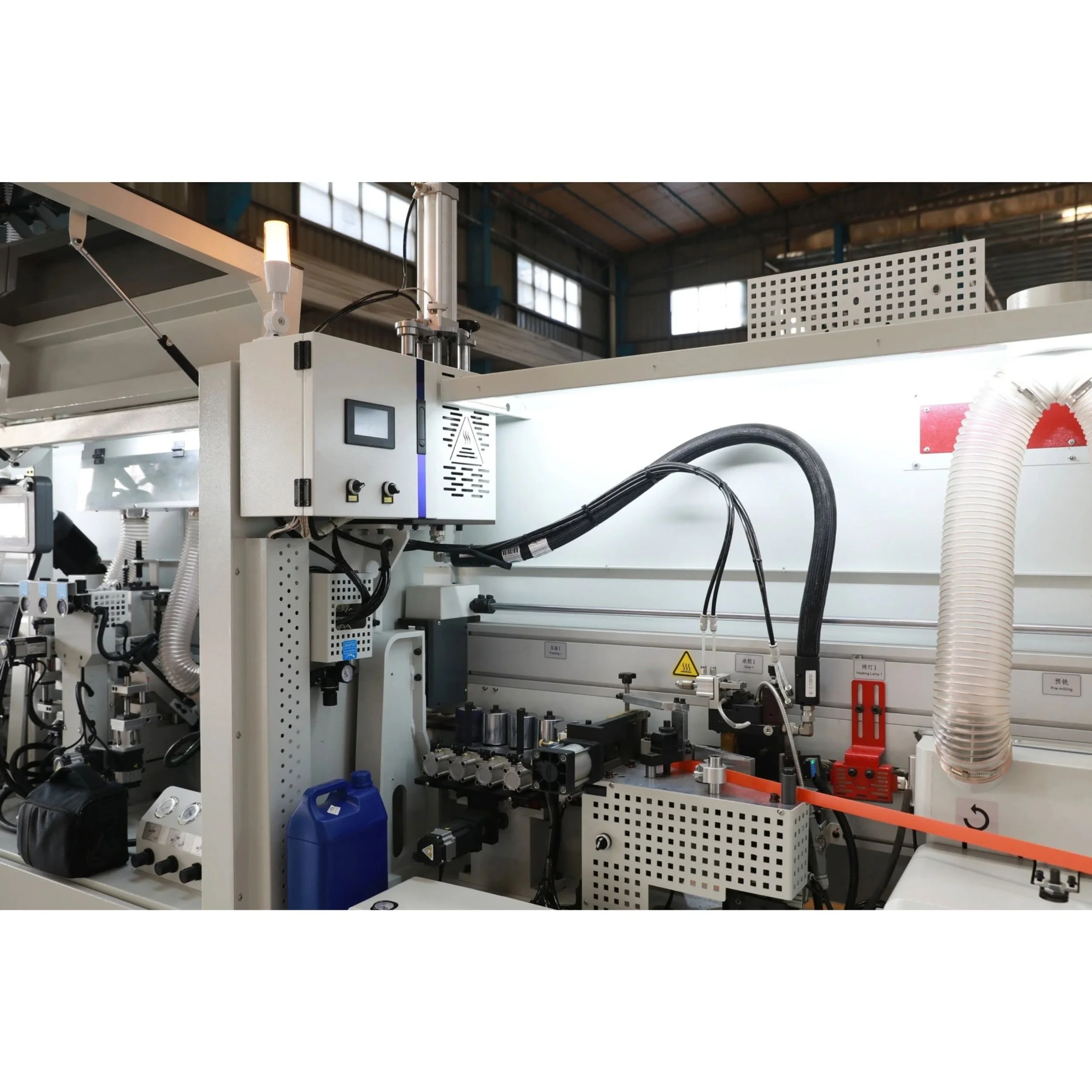

Closed PUR / EVA adhesive system

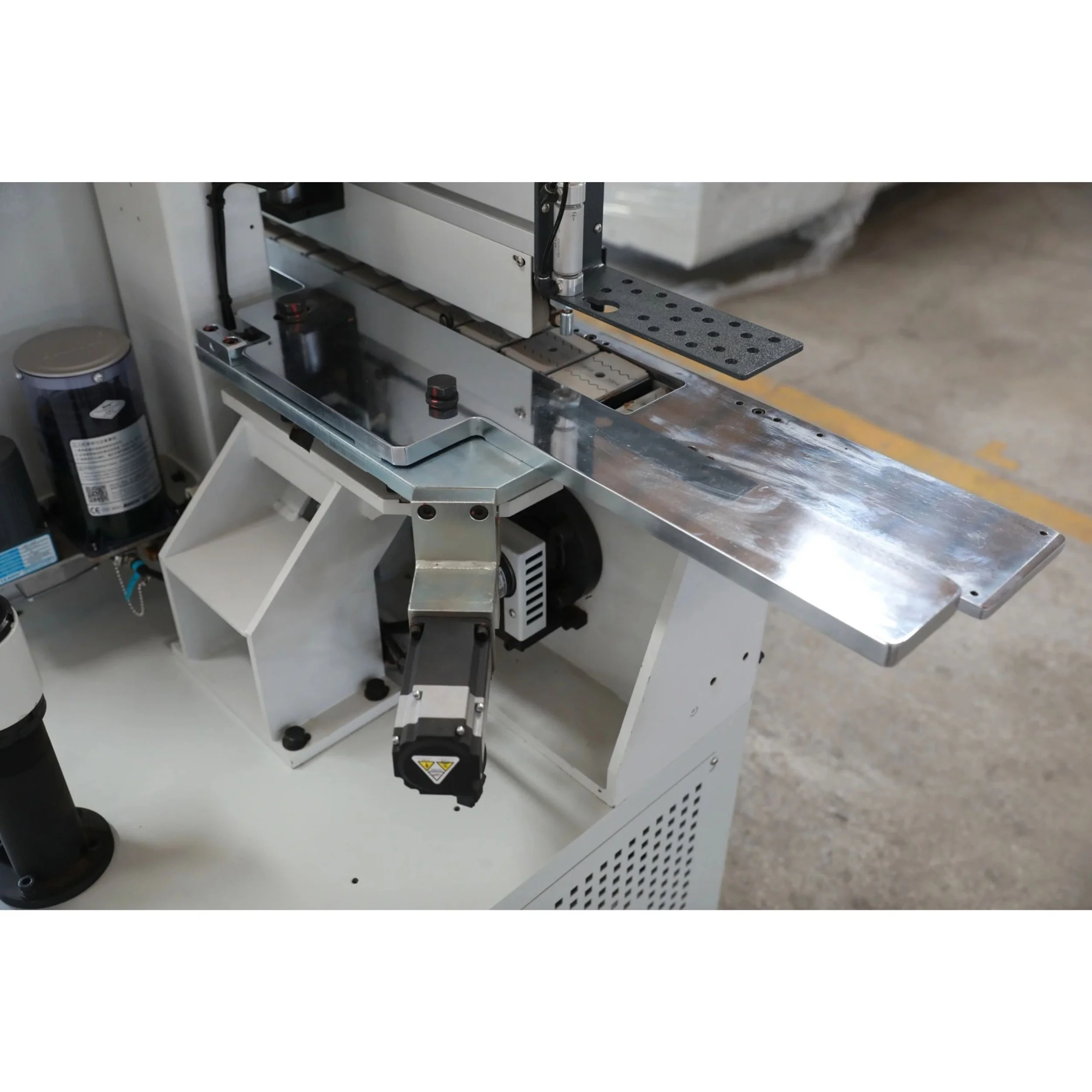

Servo-positioned infeed fence

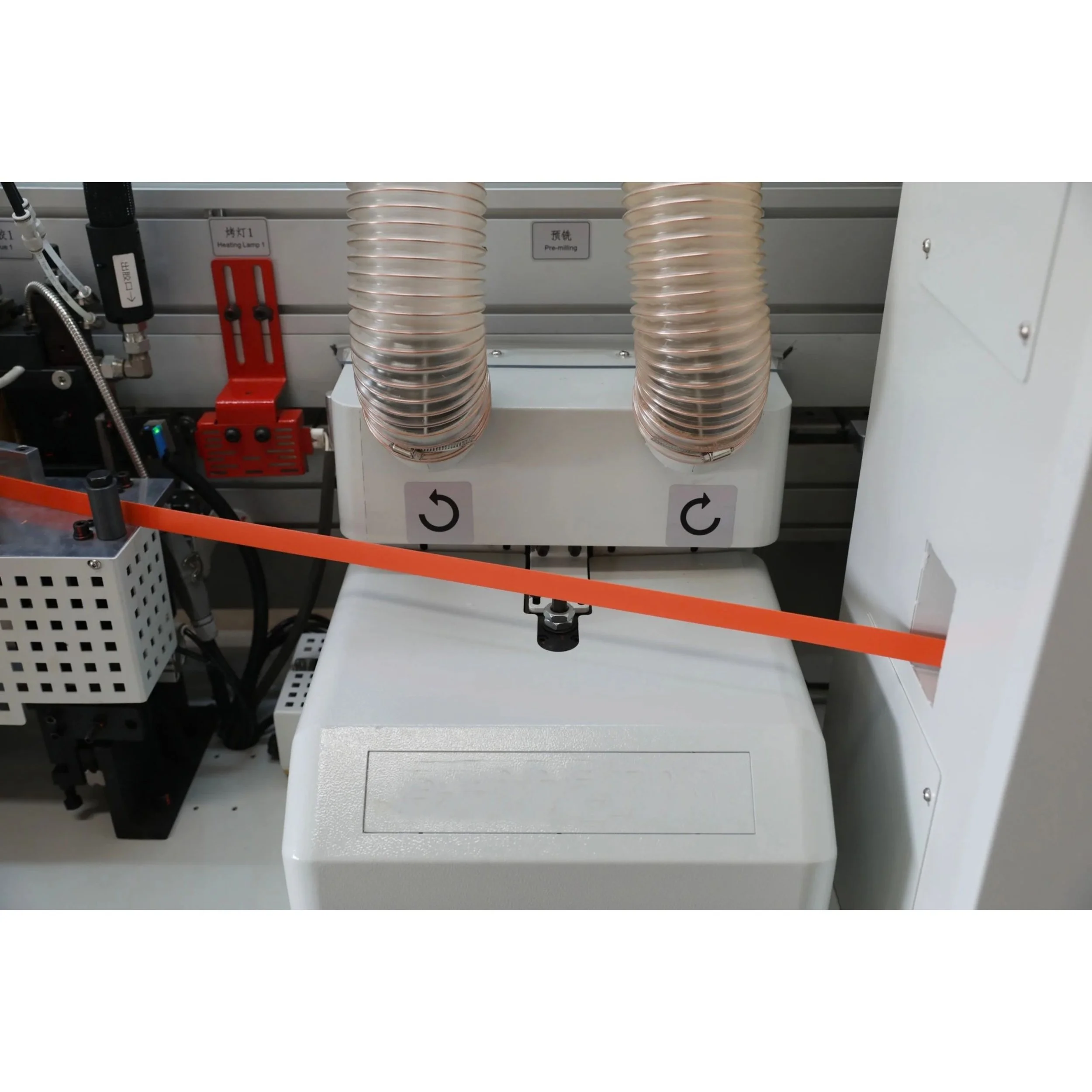

Pre-milling unit

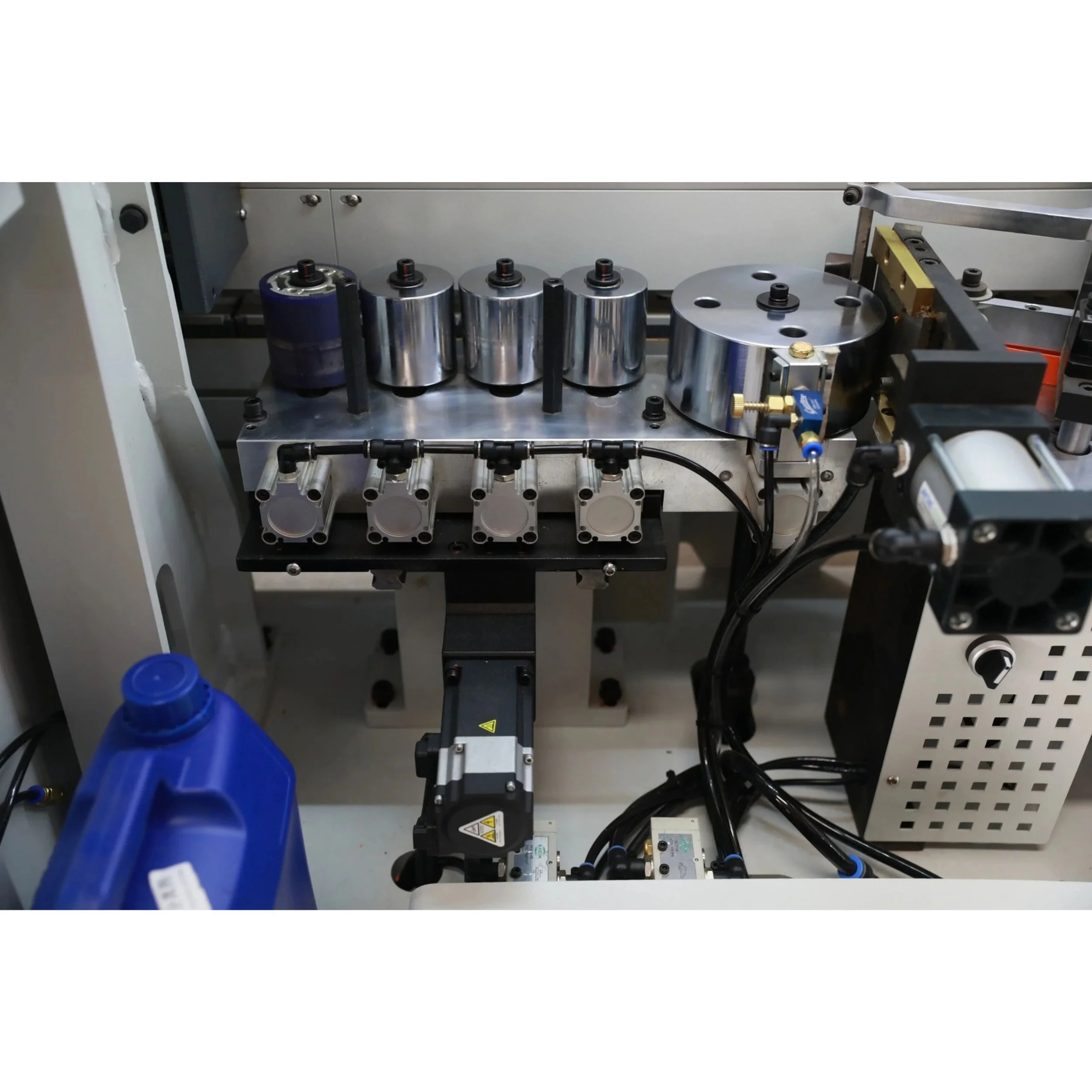

Pressure zone

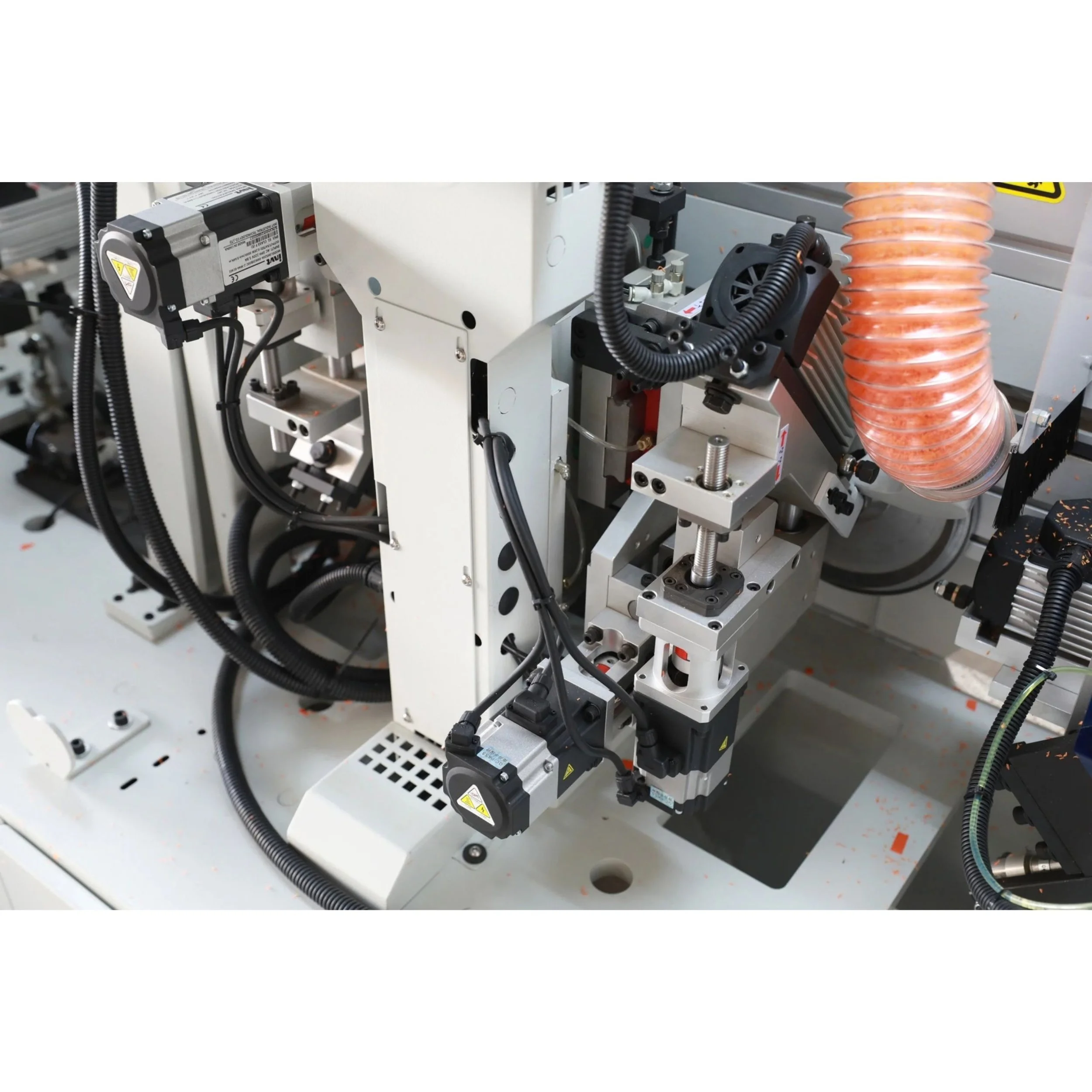

Servo multi-radius trimming

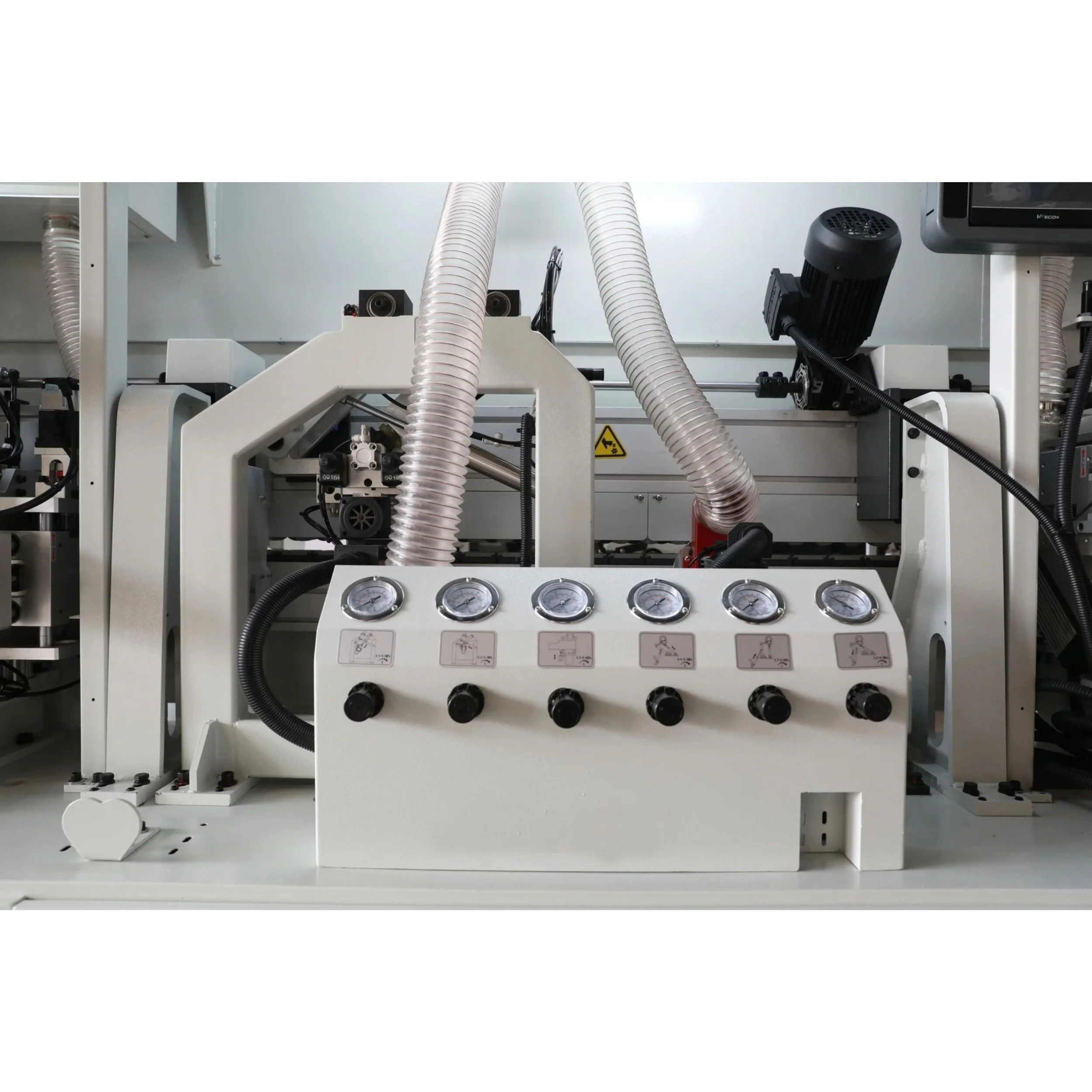

Corner rounding

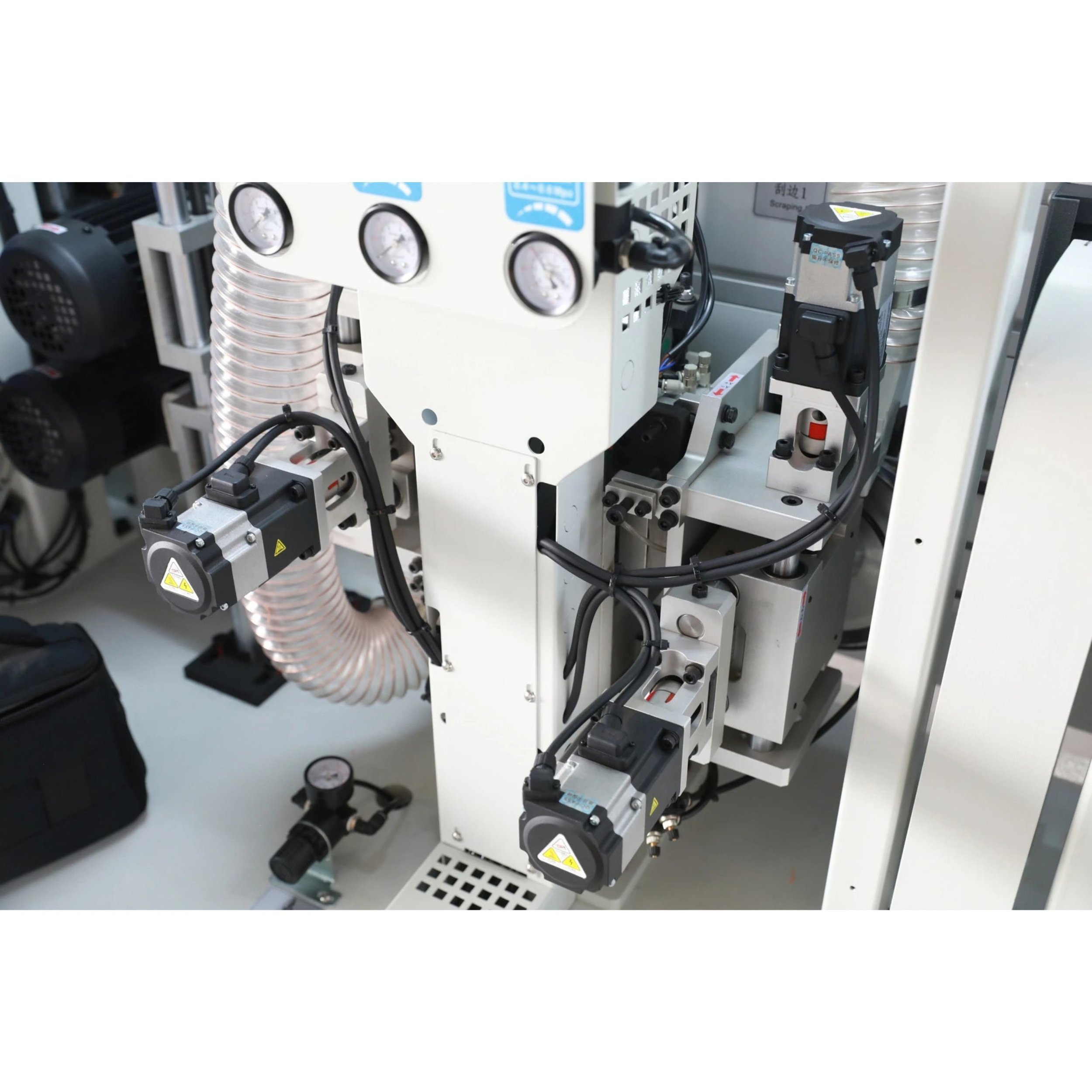

Servo multi-radius scraping

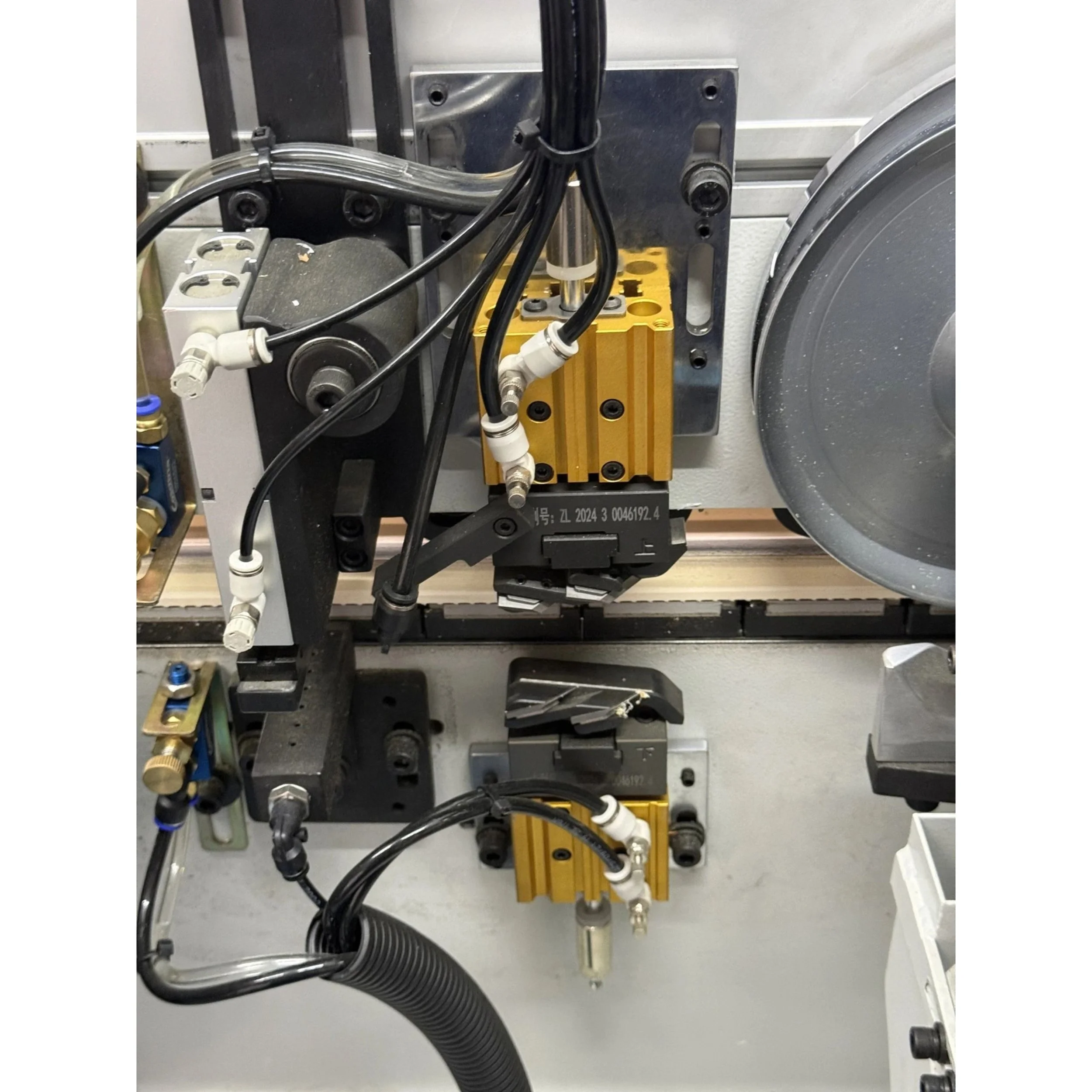

Floating flat scraping

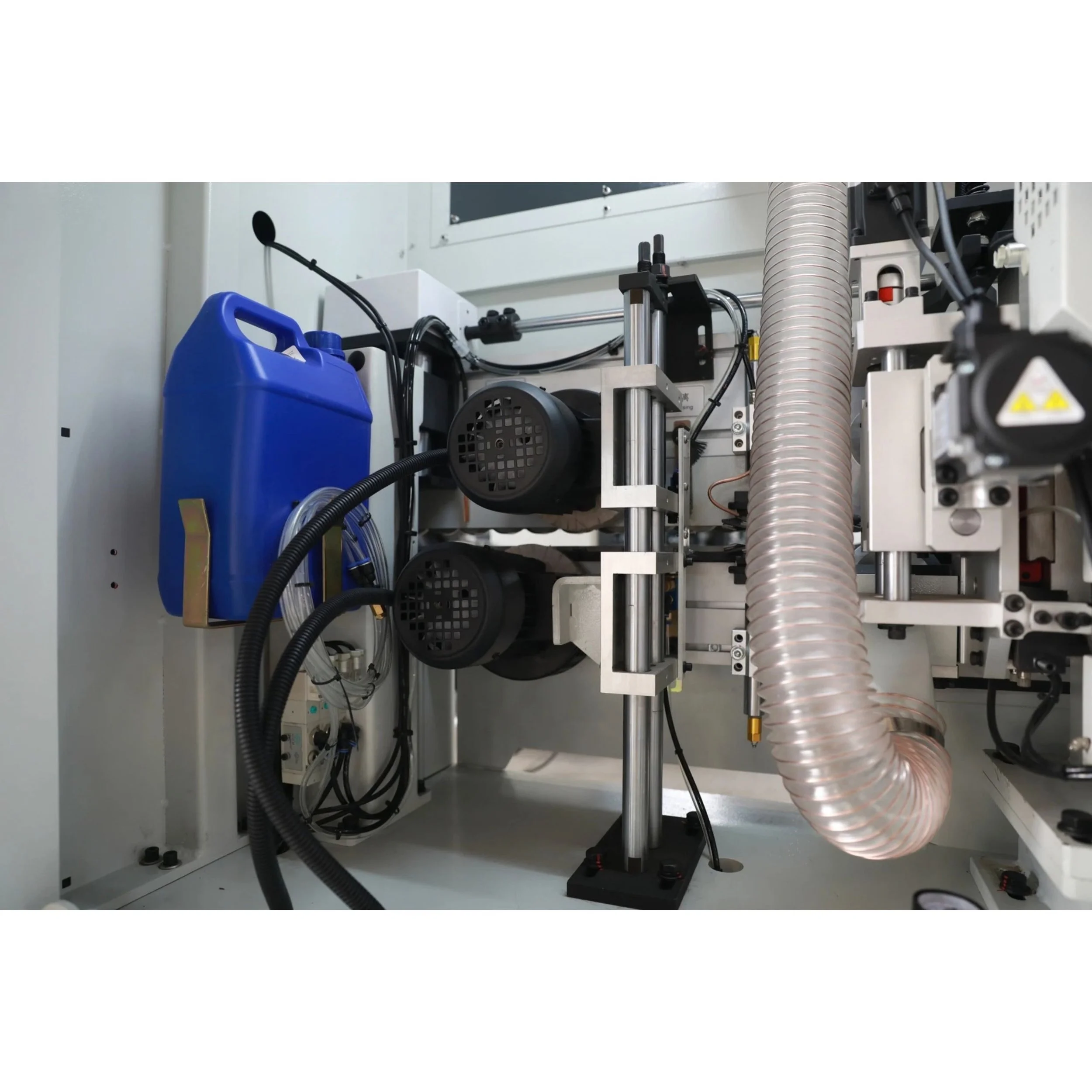

Independent buffing unit
SPECIFICATIONS:
| MODEL: | AFS 568 PRO |
|---|---|
| APPLICATION | Panel edgebanding |
| EDGE TAPE THICKNESS | 0.4–3 mm |
| PANEL THICKNESS | 10–60 mm |
| MINIMUM PANEL WIDTH | 60 mm |
| MINIMUM PANEL LENGTH | 120 mm |
| FEED SPEED | 18–23 m/min |
| CONTROL SYSTEM | Windows PC touchscreen; internal pendant control |
| PANEL PRESSURE SYSTEM | Continuous top feed belt |
| GLUE SYSTEM | Closed PUR / EVA system; heated hose and plunger feed |
| INFEED FENCE | Servo positioned |
| PRE-MILLING | Diamond cutters; 3.7 kW motor |
| EDGE PREHEATING | Infrared heating lamp |
| PRESSURE ZONE | Four heavy-duty pressure wheels and one rubber wheel |
| END TRIMMING | Dual 0.37 kW motors |
| RADIUS TRIMMING & SCRAPING | Servo adjustment for 1 / 1.5 / 2 mm edging |
| CORNER ROUNDING | Automatic positioning |
| FLAT SCRAPING | Floating flat scrapers |
| BUFFING | Top and bottom polishing motors |
| CLEANING SPRAY | Pre-milling, glue roller and buffing positions |
| AUTOMATIC LUBRICATION | Timed system |
| ELECTRICAL SUPPLY | 415 V / 50 Hz / three phase |
| INSTALLED POWER | Approximately 18–22 kW |
| WORKING AIR PRESSURE | 0.6–0.8 MPa |
| MACHINE WEIGHT | Approximately 3,000 kg |
| MACHINE DIMENSIONS | Approximately 6,815 × 900 × 1,700 mm |
